Power connectors
M12 POWER from ESCHA stands for a reliable power transmission via the standardized and compact M12-interface. A broad product range with junction- and connection cables as well as splitters and receptacles facilitates a serial wiring at field level.
Product specifications
Results (303)

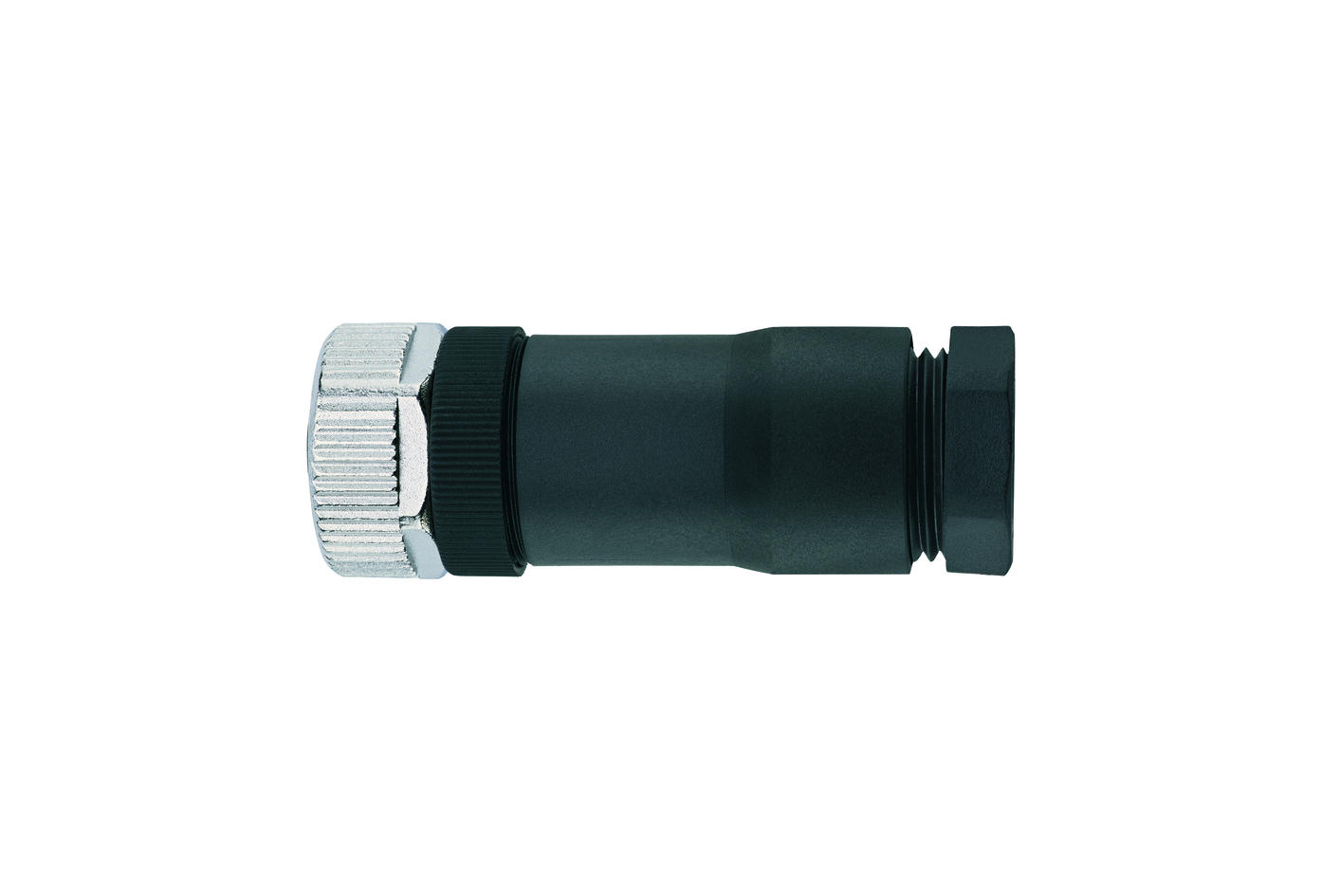

Field-wireable, M12, female, straight, 3+PE, S-coded, screw-/clamp contact, 630V 12A
Item description: PS-WAKC4K
Item-No.: 8063400
Field-wireable, M12, female, straight, 4 poles, T-coded, screw-/clamp contact, 63V 12A
Item description: PT-WAKC4K
Item-No.: 8063398
Field-wireable, M12, female, straight, 4+FE, L-coded, screw-/clamp contact, 63V 16A
Item description: PL-WAKC5K
Item-No.: 8086300
Field-wireable, M12, female, straight, 4+PE, K-coded, screw-/clamp contact, 630V 12A
Item description: PK-WAKC5K
Item-No.: 8086298

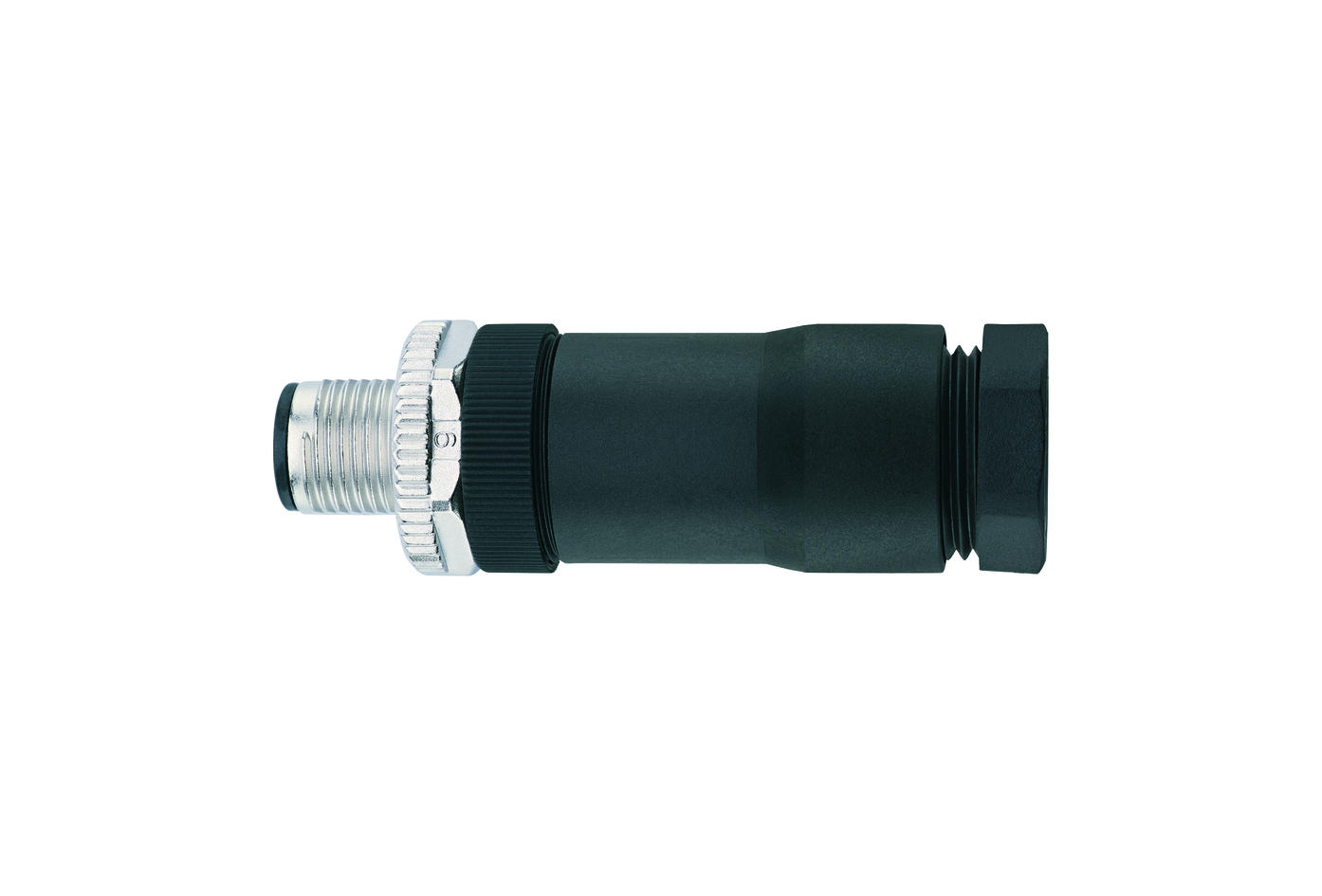

Field-wireable, M12, male, straight, 3+PE, S-coded, screw-/clamp contact, 630V 12A
Item description: PS-WASC4K
Item-No.: 8063399
Field-wireable, M12, male, straight, 4 poles, T-coded, screw-/clamp contact, 63V 12A
Item description: PT-WASC4K
Item-No.: 8063397
Field-wireable, M12, male, straight, 4+FE, L-coded, screw-/clamp contact, 63V 16A
Item description: PL-WASC5K
Item-No.: 8086299
Field-wireable, M12, male, straight, 4+PE, K-coded, screw-/clamp contact, 630V 12A
Item description: PK-WASC5K
Item-No.: 8086297
H-splitter, M12, male, straight, 3+PE, S-coded, M12, female, straight, 3+PE, S-coded, POWER
Item description: PS-4HM12-S4-3K4
Item-No.: 8062860
h-splitter, M12, male, straight, 3+PE, S-coded, M12, female, straight, 3+PE, S-coded, POWER
Item description: PS-3HM12-S4-2K4
Item-No.: 8062859
H-splitter, M12, male, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, POWER
Item description: PT-4HM12-S4-3K4
Item-No.: 8067903
h-splitter, M12, male, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, POWER
Item description: PT-3HM12-S4-2K4
Item-No.: 8067900
H-splitter, M12, male, straight, 4+FE, L-coded, M12, female, straight, 4+FE, L-coded, POWER
Item description: PL-4HM12-S5-3K5
Item-No.: 8075821
h-splitter, M12, male, straight, 4+FE, L-coded, M12, female, straight, 4+FE, L-coded, POWER
Item description: PL-3HM12-S5-2K5
Item-No.: 8075820
h-splitter, M12, male, straight, 4+PE, K-coded, M12, female, straight, 4+PE, K-coded, POWER
Item description: PK-3HM12-S5-2K5
Item-No.: 8075817
H-splitter, M12, male, straight, 4+PE, K-coded, M12, female, straight, 4+PE, K-coded, POWER
Item description: PK-4HM12-S5-3K5
Item-No.: 8075818
M12, female, angled, 2+PE, S-coded, M12, male, angled, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-2-PS-WM12S3.002/S5015
Item-No.: 8064006
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
M12, female, angled, 2+PE, S-coded, M12, male, angled, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-1-PS-WM12S3.002/S5015
Item-No.: 8064005
Cable quality: S5015, PUR, UL
Cable length: 1.0 m
M12, female, angled, 2+PE, S-coded, M12, male, angled, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-5-PS-WM12S3.002/S5015
Item-No.: 8064007
Cable quality: S5015, PUR, UL
Cable length: 5.0 m
M12, female, angled, 2+PE, S-coded, M12, male, straight, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-2-PS-AM12S3.002/S5015
Item-No.: 8064009
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
M12, female, angled, 2+PE, S-coded, M12, male, straight, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-5-PS-AM12S3.002/S5015
Item-No.: 8064010
Cable quality: S5015, PUR, UL
Cable length: 5.0 m
M12, female, angled, 2+PE, S-coded, M12, male, straight, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-1-PS-AM12S3.002/S5015
Item-No.: 8064008
Cable quality: S5015, PUR, UL
Cable length: 1.0 m
M12, female, angled, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-2/S5015
Item-No.: 8064014
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
M12, female, angled, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-5/S5015
Item-No.: 8064015
Cable quality: S5015, PUR, UL
Cable length: 5.0 m
M12, female, angled, 2+PE, S-coded, POWER
Item description:
PS-WM12K3.002-10/S5015
Item-No.: 8064016
Cable quality: S5015, PUR, UL
Cable length: 10.0 m
M12, female, angled, 3+PE, S-coded, M12, male, angled, 3+PE, S-coded, POWER
Item description:
PS-WM12K4.155-2-PS-WM12S4.155/S5015
Item-No.: 8068137
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
M12, female, angled, 3+PE, S-coded, M12, male, angled, 3+PE, S-coded, POWER
Item description:
PS-WM12K4.155-5-PS-WM12S4.155/S5015
Item-No.: 8068138
Cable quality: S5015, PUR, UL
Cable length: 5.0 m
M12, female, angled, 3+PE, S-coded, M12, male, angled, 3+PE, S-coded, POWER
Item description:
PS-WM12K4.155-1-PS-WM12S4.155/S5015
Item-No.: 8068299
Cable quality: S5015, PUR, UL
Cable length: 1.0 m
M12, female, angled, 3+PE, S-coded, M12, male, straight, 3+PE, S-coded, POWER
Item description:
PS-WM12K4.155-5-PS-AM12S4.155/S5015
Item-No.: 8068141
Cable quality: S5015, PUR, UL
Cable length: 5.0 m
M12, female, angled, 3+PE, S-coded, M12, male, straight, 3+PE, S-coded, POWER
Item description:
PS-WM12K4.155-2-PS-AM12S4.155/S5015
Item-No.: 8068140
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
