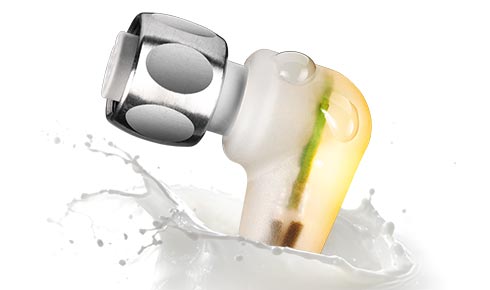

Product contact zone
In this zone, food may come into contact with system parts and afterwards be returned to the handling process. Therefore, the hygiene requirements are particularly high in this area.
To avoid the deposit of residues, connectors may not contain any dirt pockets. That is why ESCHA has developed a product range in ‘Hygienic Design’, referring to EHEDG directives. FDA-compliant materials and a high-quality TPE- cable guarantee a high resistance to sour and alkaline cleaning- and disinfectant agents

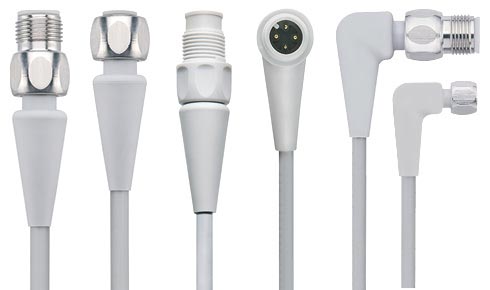

Connectors in Hygienic Design
M12, female, straight, 4 poles, M12, male, straight, 4 poles, Food & Beverage
Item description:
FB-WAKH4-5-FB-WASH4/P01
Item-No.: 8063723
Cable quality: P01, PVC, UL
Cable length: 5.0 m
M12, female, angled, 5 poles, Food & Beverage
Item description: FB-WWAKH4.5-10/P01
Item-No.: 8063689
Cable quality: P01, PVC, UL
Cable length: 10.0 m

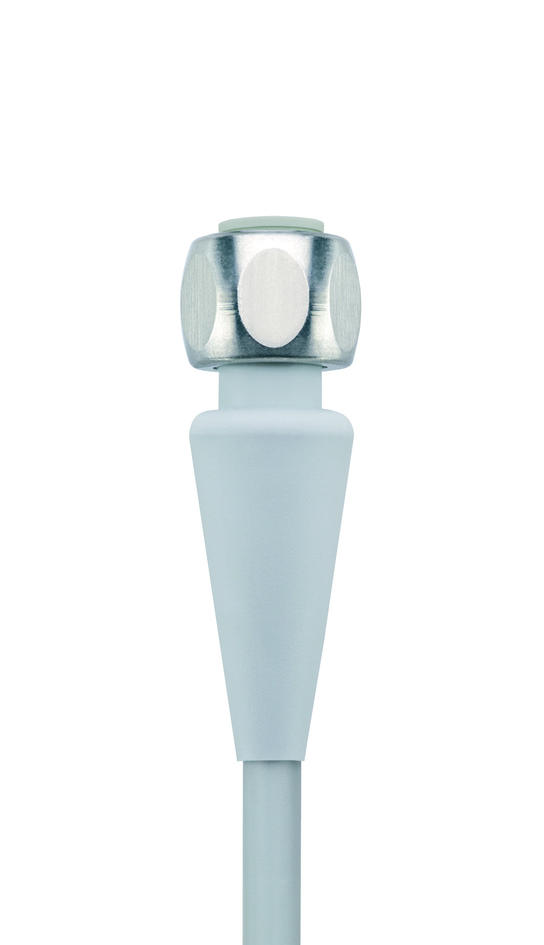

M12, female, straight, 5 poles, Food & Beverage
Item description: FB-WAKH4.5-2/P01
Item-No.: 8063739
Cable quality: P01, PVC, UL
Cable length: 2.0 m
M12, female, angled, 5 poles, with LED, Food & Beverage
Item description: FB-WWAKH4.5P3-2/P00
Item-No.: 8063808
Cable quality: P00, PVC
Cable length: 2.0 m
M12, female, angled, 5 poles, Food & Beverage
Item description: FB-WWAKH4.5-2/S3930
Item-No.: 8063885
Cable quality: S3930, TPE
Cable length: 2.0 m
M12, female, angled, 3 poles, M12, male, angled, 3 poles, Food & Beverage
Item description:
FB-WWAKH3-2-FB-WWASH3/P00
Item-No.: 8063832
Cable quality: P00, PVC
Cable length: 2.0 m
M12, female, straight, 3 poles, M12, male, straight, 3 poles, Food & Beverage
Item description:
FB-WAKH3-5-FB-WASH3/S3930
Item-No.: 8058589
Cable quality: S3930, TPE
Cable length: 5.0 m
M8, female, angled, 3 poles, with LED, Food & Beverage
Item description: FB-SWKPH3P2-5/P00
Item-No.: 8063745
Cable quality: P00, PVC
Cable length: 5.0 m

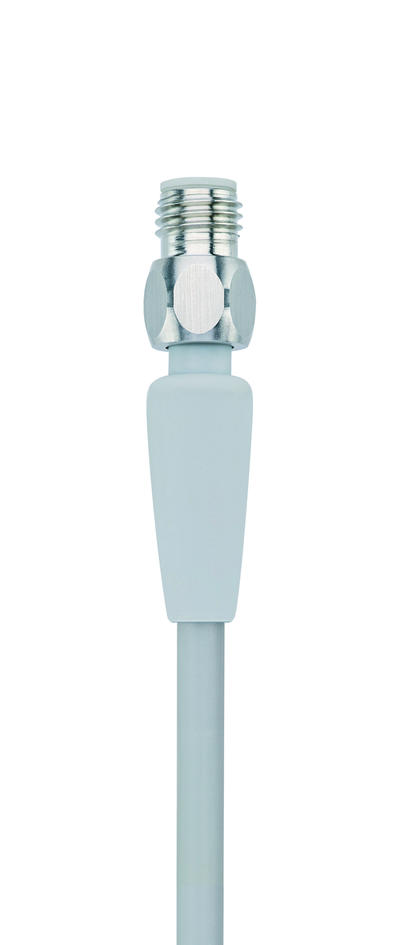

M8, female, straight, 3 poles, M8, male, straight, 3 poles, Food & Beverage
Item description:
FB-SKPH3-2-FB-SSPH3/S3930
Item-No.: 8058600
Cable quality: S3930, TPE
Cable length: 2.0 m
M12, female, straight, 5 poles, Food & Beverage
Item description: FB-WAKH4.5-10/P00
Item-No.: 8063819
Cable quality: P00, PVC
Cable length: 10.0 m
Spray zone
In the spray zone – also called wash-down zone – food may enter into contact with system parts, but will not be returned to the handling process. Thus, the hygiene requirements towards connectors and cables are correspondingly lower in this area.
ESCHA offers easy to clean connectivity with cost-effective PVC-cables for the spray zone. Upon request, you can get M12-connectors with plastic locking nut.
Connectors with PVC-cable
M8, female, straight, 3 poles, M8, male, straight, 3 poles, Food & Beverage
Item description:
FB-SKPH3-1-FB-SSPH3/P00
Item-No.: 8063875
Cable quality: P00, PVC
Cable length: 1.0 m

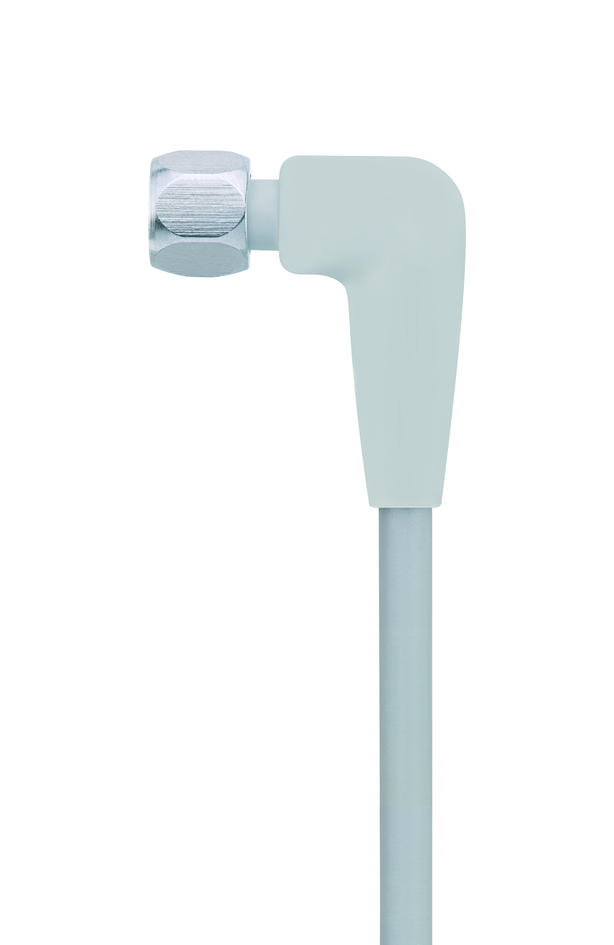

M8, female, angled, 3 poles, Food & Beverage
Item description: FB-SWKPH3-10/P00
Item-No.: 8063720
Cable quality: P00, PVC
Cable length: 10.0 m
M12, female, angled, 4 poles, Food & Beverage
Item description: FB-WWAKH4-2/P01
Item-No.: 8063672
Cable quality: P01, PVC, UL
Cable length: 2.0 m
M12, female, straight, 4 poles, M12, male, straight, 4 poles, Food & Beverage
Item description:
FB-WAKH4-1-FB-WASH4/P00
Item-No.: 8063846
Cable quality: P00, PVC
Cable length: 1.0 m
M8, female, straight, 3 poles, M8, male, straight, 3 poles, Food & Beverage
Item description:
FB-SKPH3-5-FB-SSPH3/P00
Item-No.: 8063877
Cable quality: P00, PVC
Cable length: 5.0 m
M12, female, angled, 5 poles, M12, male, angled, 5 poles, Food & Beverage
Item description:
FB-WWAKH4.5-2-FB-WWASH4.5/P00
Item-No.: 8063821
Cable quality: P00, PVC
Cable length: 2.0 m

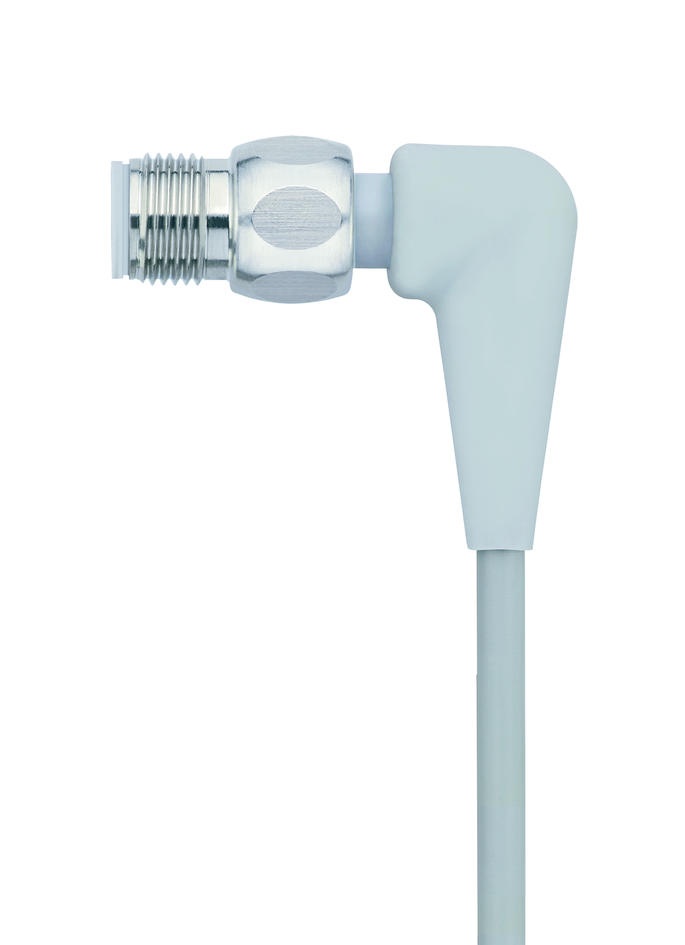

M12, male, angled, 4 poles, Food & Beverage
Item description: FB-WWASH4-5/P01
Item-No.: 8063656
Cable quality: P01, PVC, UL
Cable length: 5.0 m
M12, female, straight, 3 poles, M12, male, straight, 3 poles, Food & Beverage
Item description:
FB-WAKH3-2-FB-WASH3/P00
Item-No.: 8063853
Cable quality: P00, PVC
Cable length: 2.0 m
M12, male, angled, 3 poles, Food & Beverage
Item description: FB-WWASH3-2/P00
Item-No.: 8063781
Cable quality: P00, PVC
Cable length: 2.0 m
M12, female, angled, 4 poles, with LED, Food & Beverage
Item description: FB-WWAKH4P2-5/P00
Item-No.: 8063788
Cable quality: P00, PVC
Cable length: 5.0 m
Packaging zone
The packaging zone is comparable with the classic industrial area, where food cannot come into contact with system parts. Aggressive cleaning agents and steam-jet cleaning are not required. For this zone, the proven ESCHA sensor/actuator product range is suitable.

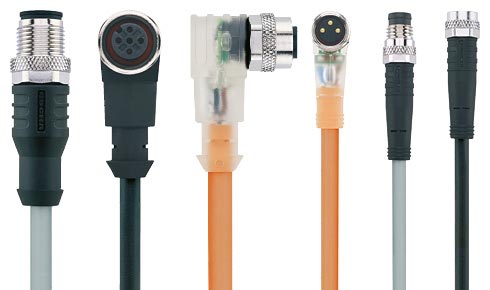

Sensor-/Actuator connectors
M12, female, straight, 5 poles, stainless steel, sensor-/actuator cable
Item description: AL-WAKE4.5-5/S400
Item-No.: 8118301
Cable quality: S400, PUR, easystrip, UL
Cable length: 5.0 m
Ø8mm snap, female, angled, 4 poles, Ø8mm snap, male, straight, 4 poles, sensor-/actuator cable
Item description:
AL-WKP4-5-AL-SP4/S370
Item-No.: 8076455
Cable quality: S370, PUR, UL
Cable length: 5.0 m
M12, female, angled, 4+PE, with LED, sensor-/actuator cable
Item description: AL-WWAK5P3-10/P01
Item-No.: 8051345
Cable quality: P01, PVC, UL
Cable length: 10.0 m

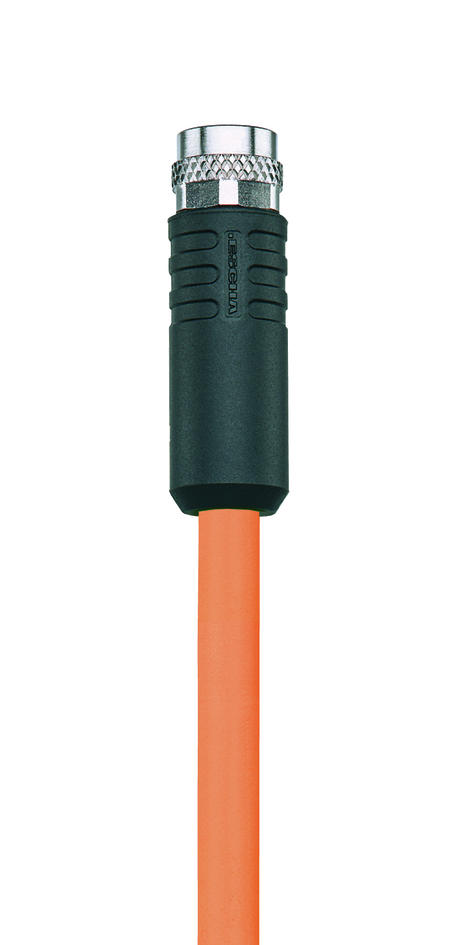

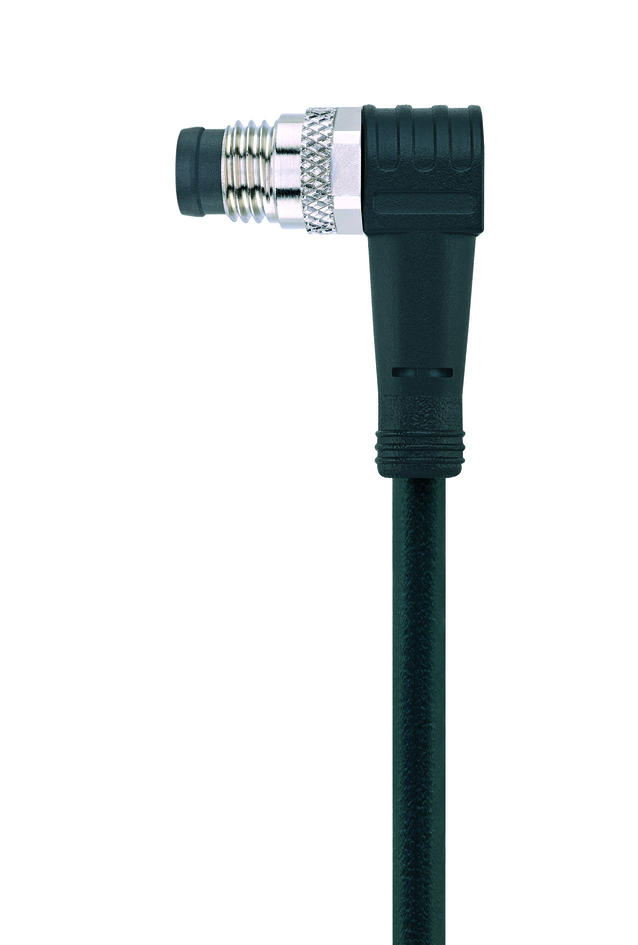

M8, female, straight, 8 poles, M8, male, angled, 8 poles, sensor-/actuator cable
Item description:
AL-SKP8-2-AL-SWSP8/P00
Item-No.: 8106220
Cable quality: P00, PVC
Cable length: 2.0 m

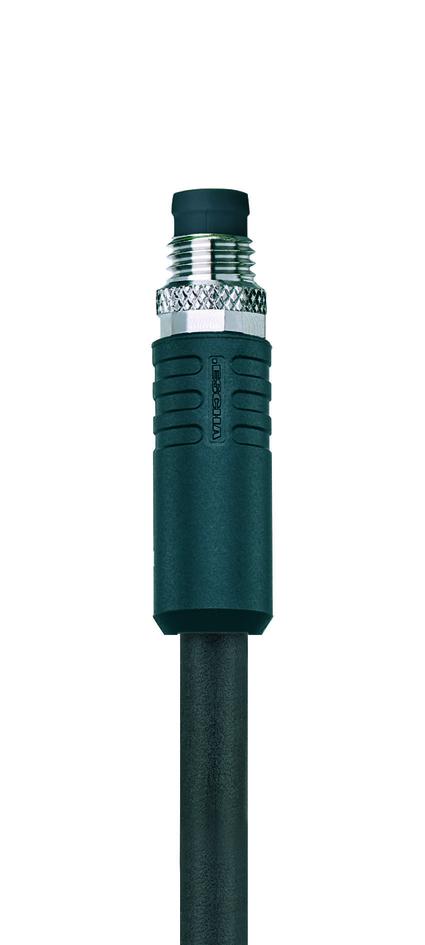

M8, female, straight, 3 poles, M8, male, straight, 3 poles, sensor-/actuator cable
Item description:
AL-SKP3-2-AL-SSP3/P01BK
Item-No.: 8081928
Cable quality: P01BK, PVC, UL
Cable length: 2.0 m

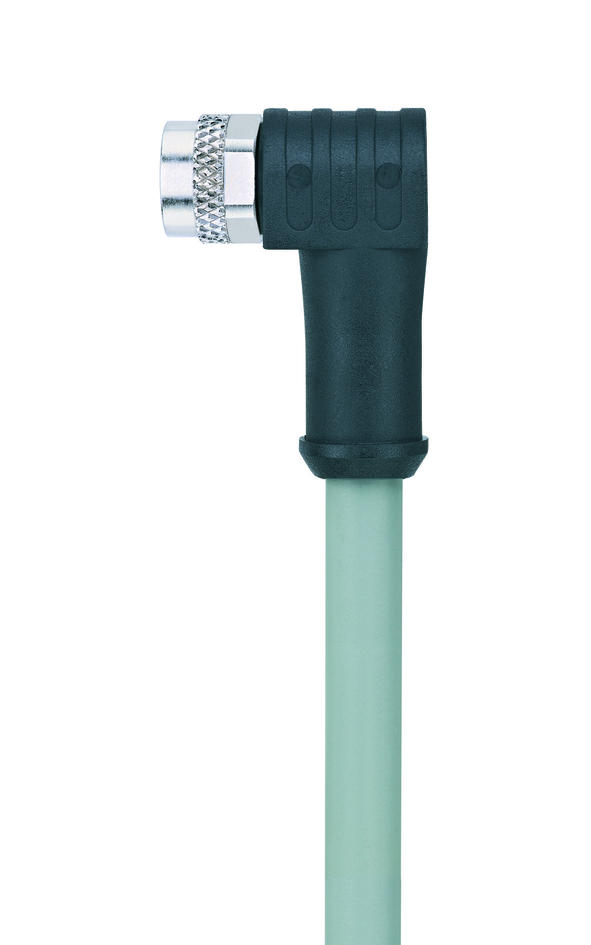

M8, female, angled, 5 poles, M8, male, straight, 5 poles, shielded, sensor-/actuator cable
Item description:
AL-SWKPS4.5-2-AL-SSPS4.5/P00
Item-No.: 8042873
Cable quality: P00, PVC
Cable length: 2.0 m

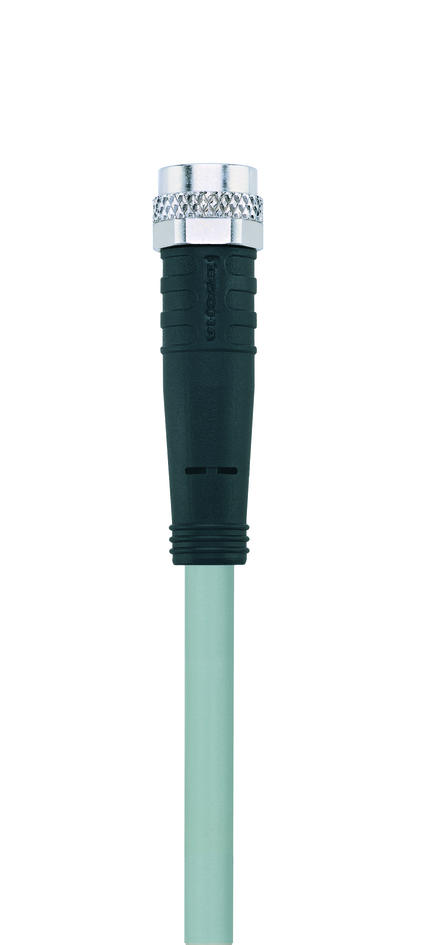

M12, female, straight, 4 poles, sensor-/actuator cable
Item description: AL-WAK4-10/S370GY
Item-No.: 8058858
Cable quality: S370GY, PUR, UL
Cable length: 10.0 m

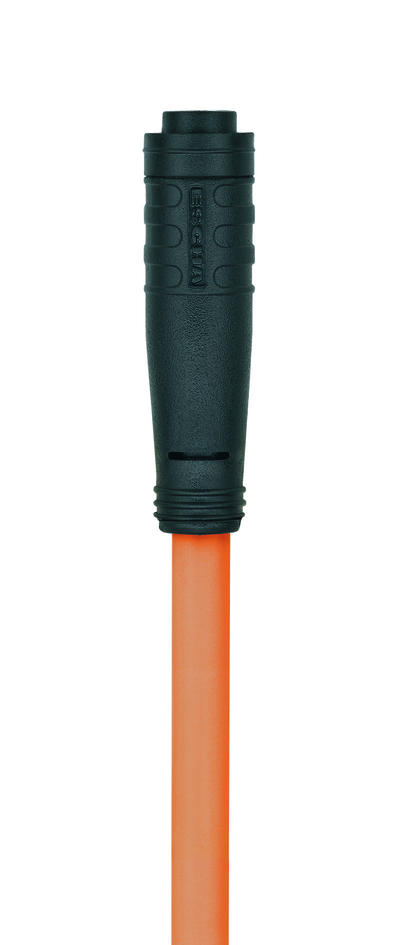

Ø8mm snap, female, straight, 5 poles, Ø8mm snap, male, straight, 5 poles, sensor-/actuator cable
Item description:
AL-KP4.5-5-AL-SP4.5/S571/S320
Item-No.: 8110762
Cable quality: S571, PUR, UL
Cable length: 5.0 m
M12, male, angled, 4 poles, grip body with thread, sensor-/actuator cable
Item description: AL-WWASG4-10/P01BK
Item-No.: 8082070
Cable quality: P01BK, PVC, UL
Cable length: 10.0 m
Ø8mm snap, male, straight, 3 poles, sensor-/actuator cable
Item description: AL-SP3-5/S7400
Item-No.: 8059168
Cable quality: S7400, PUR, robotic, UL
Cable length: 5.0 m
