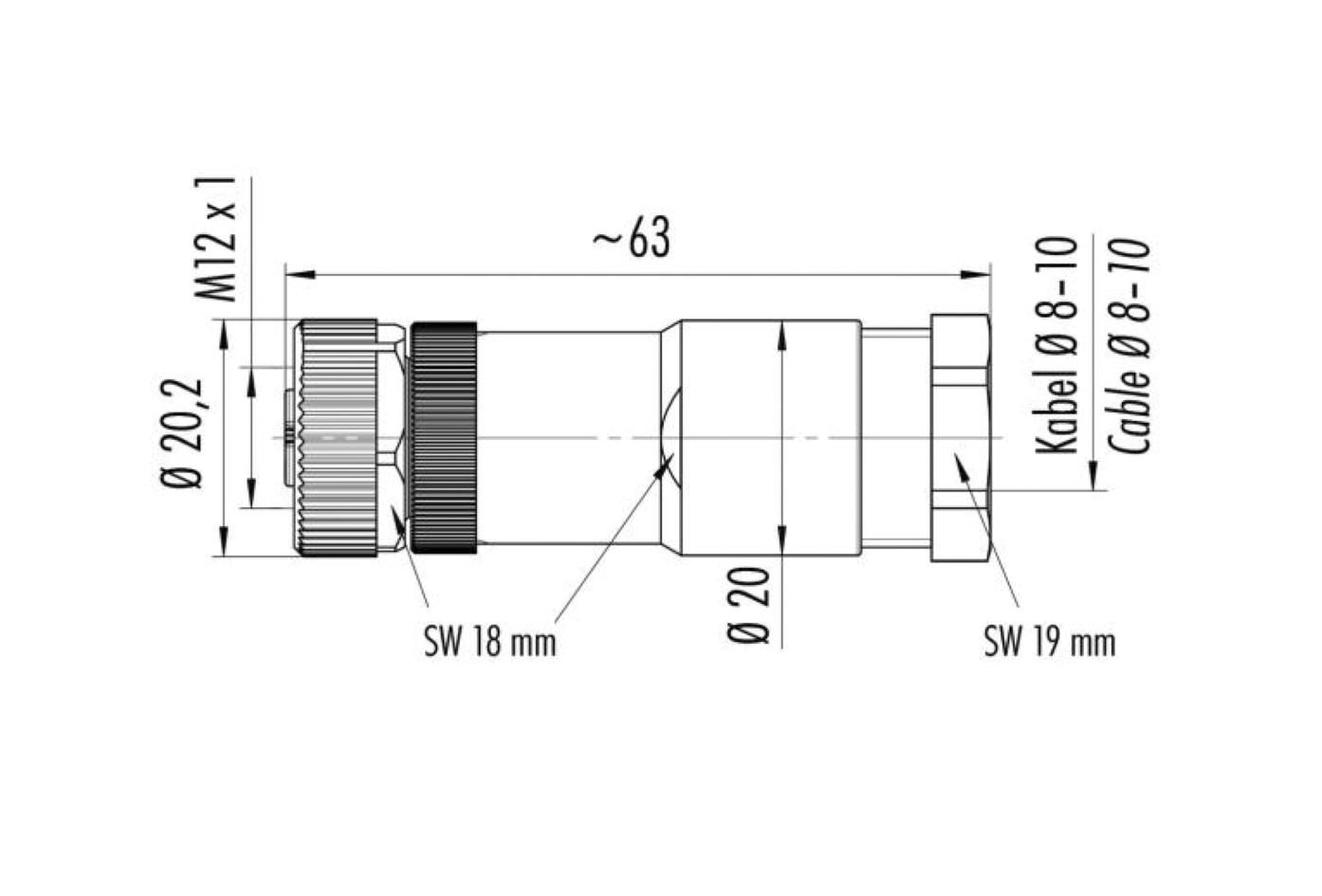

Field-wireable, M12, female, straight, 4 poles, T-coded, screw-/clamp contact, 63V 12A
Product description
Product type: Field-wireable
Application: POWER
Item description: PT-WAKC4K
Item-No.: 8063398
Packaging unit: 1 pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+85°C |
| Cable outlet | 8...10 mm |
| Coding | T |
| Connecting cross-section | Max. 1.50 mm² |
| Connecting type | Screw-/clamp contact |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK |
| Current load per pin (at 40°C) | 12 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP67 |
| Grip body material | Plastic, PA, BK |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Number of pins | 4 |
| Rated voltage |
|
| Resistance | 3 mΩ |
| Standards | IEC 61076-2-111 |
