Solutions for all wiring levels
Trains are divided into five wiring levels. The Ethernet-Train-Backbone uses connectors with high transmission rates up to 10GBit/s according to Cat6A. For the Ethernet-Consist-Network, components with lower data rates of up to 100MBits/s according to Cat5e are sufficient. The third level consists of standard sensor-/actuator wiring for e.g. door systems. The fourth level consists of valve connectors with general rail approval meeting the high security standards according to DIN EN 45545-2 (fire performance) and DIN EN 50155 (shock, vibration and mechanical stresses). In the fifth level, power connectors are used to ensure the power supply.
ESCHA offers the appropriate and standard-compliant connectivity for all levels.
M12, female, straight, 4 poles, D-coded, M12, male, straight, 4 poles, D-coded, shielded, rail approved
Item description:
RA-WAKSY4.029-5-RA-WASSY4.029/S4002BU
Item-No.: 8087413
Cable quality: S4002BU, RADOX®, Reduced Wire
Cable length: 5.0 m
Adapter, M12, female, straight, 8 poles, X-coded, M12, female, straight, 8 poles, X-coded, shielded, Industrial Ethernet
Item description: IE-WAKSX8-IE-WAKSX8
Item-No.: 8065951

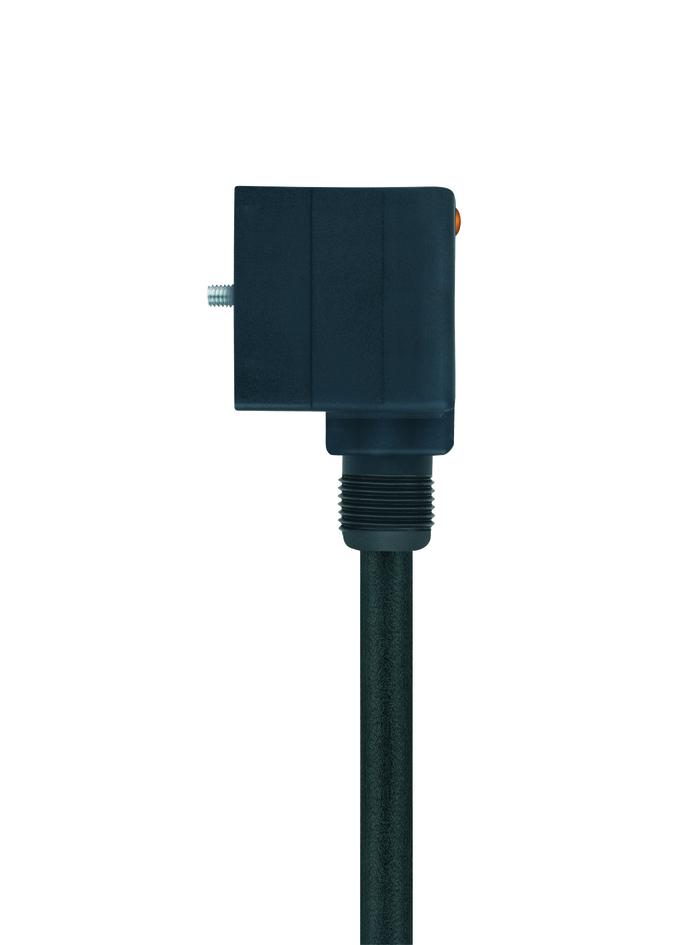

Valve connector, housing style CI, 2+PE bridged, with LED, rail approved
Item description:
RA-VCIG22.1-24.1-10/S5600
Item-No.: 8116600
Cable quality: S5600, ÖLFLEX® TRAIN
Cable length: 10.0 m
M12, male, angled, 4 poles, D-coded, M12, male, straight, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WWASSY4.029-2-IE-WASSY4.029/S2171
Item-No.: 8044089
Cable quality: S2171, PUR, UL
Cable length: 2.0 m
Receptacle Single-ended cordset, M12, female, straight, 4 poles, D-coded, shielded, rail approved
Item description:
RA-FKFDSY4.029-5/S4002
Item-No.: 8063079
Cable quality: S4002, RADOX®, Reduced Wire
Cable length: 5.0 m
M12, male, angled, 4 poles, D-coded, RJ45, male, straight, 4 poles, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WWASSY4.029-1-IE-RJ45SS4.003/S2171
Item-No.: 8062317
Cable quality: S2171, PUR, UL
Cable length: 1.0 m
M12, female, straight, 4 poles, M12, male, straight, 4 poles, sensor-/actuator cable
Item description:
AL-WAK4-5-AL-WAS4/S370
Item-No.: 8044042
Cable quality: S370, PUR, UL
Cable length: 5.0 m
M12, male, angled, 4 poles, D-coded, M12, male, angled, 4 poles, D-coded, shielded, rail approved
Item description:
RA-WWASSY4.029-5-RA-WWASSY4.029/S5002BU
Item-No.: 8087254
Cable quality: S5002BU, BETAtrans®, Reduced Wire
Cable length: 5.0 m
M12, male, straight, 4 poles, D-coded, RJ45, male, straight, 4 poles, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WASSY4.029-5-IE-RJ45SS4.003/S2171
Item-No.: 8061083
Cable quality: S2171, PUR, UL
Cable length: 5.0 m
Receptacle, M12, male, straight, 4 poles, front wall-mounting, wire contact, rail approved
Item description: RA-FVM12SUA4-0,5/M12
Item-No.: 8074758
Compact and field-wireable
Field-wireable connectors can be used wherever a high degree of flexibility is required. Initially unknown cable-lengths or panel-feed-throughs are perfect examples. ESCHA offers the most compact field-wireable M12-connectors for rail applications. The 4-pole connectors with A-coding (sensor/actuator) or D-coding (ECN) are a little bit taller than 40mm and meet the important DIN EN 45545-2 and DIN EN 50155 standards. Thanks to their low weight and compact housing-style, they are the perfect solution for railway applications with minimum installation space.
Field-wireable, M12, male, straight, 8 poles, X-coded, insulation displacement contact, shielded, 50VAC/60VDC 0,5A
Item description: IE-WASCSX8S
Item-No.: 8050231
Field-wireable, M12, male, straight, 4 poles, crimp contact, shielded, rail approved, 250V 4A
Item description: RA-WASCS4C
Item-No.: 8098127
Field-wireable, M12, male, straight, 4 poles, D-coded, crimp contact, shielded, rail approved, 250V 4A
Item description: RA-WASCSY4C
Item-No.: 8098126
Connectivity for busses
The ‘bus approved‘ seal combines all products which are adapted to bus applications and are tested according the following standards:
- ECE R118 (fire performance cable)
- IEC 61076-109 bzw. IEC 61076-2-101 (type-test connector)
- IEC 60529 (IP protection class)
M12, female, angled, 4 poles, D-coded, M12, male, straight, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WWAKSY4.029-1-IE-WASSY4.029/S2171
Item-No.: 8081798
Cable quality: S2171, PUR, UL
Cable length: 1.0 m
M12, male, straight, 4 poles, D-coded, RJ45, male, straight, 4 poles, shielded, rail approved
Item description:
RA-WASSY4.029-5-RA-RJ45SS4.003/S4002
Item-No.: 8063084
Cable quality: S4002, RADOX®, Reduced Wire
Cable length: 5.0 m
M12, male, angled, 5 poles, CANopen/DeviceNet
Item description: CD-WWAS5.022-5/S2800
Item-No.: 8047527
Cable quality: S2800, PUR, UL
Cable length: 5.0 m
M12, female, straight, 4 poles, with LED, sensor-/actuator cable
Item description: AL-WAK4P2-2/S370
Item-No.: 8048938
Cable quality: S370, PUR, UL
Cable length: 2.0 m
Receptacle Single-ended cordset, M12, female, straight, 5 poles, back wall-mounting, shielded, CANopen/DeviceNet
Item description:
CD-FKFDS5.022-10/16/S2800
Item-No.: 8071572
Cable quality: S2800, PUR, UL
Cable length: 10.0 m
Receptacle Double-ended cordset, M12, female, straight, 4 poles, D-coded, M12, male, angled, 4 poles, D-coded, shielded, rail approved
Item description:
RA-FKFDSY4.029-5-RA-WWASSY4.029/S5002BU
Item-No.: 8087257
Cable quality: S5002BU, BETAtrans®, Reduced Wire
Cable length: 5.0 m
M12, female, angled, 4 poles, M12, male, straight, 4 poles, with LED, sensor-/actuator cable
Item description:
AL-WWAK4P3.1-5-AL-WAS4/S370
Item-No.: 8045927
Cable quality: S370, PUR, UL
Cable length: 5.0 m

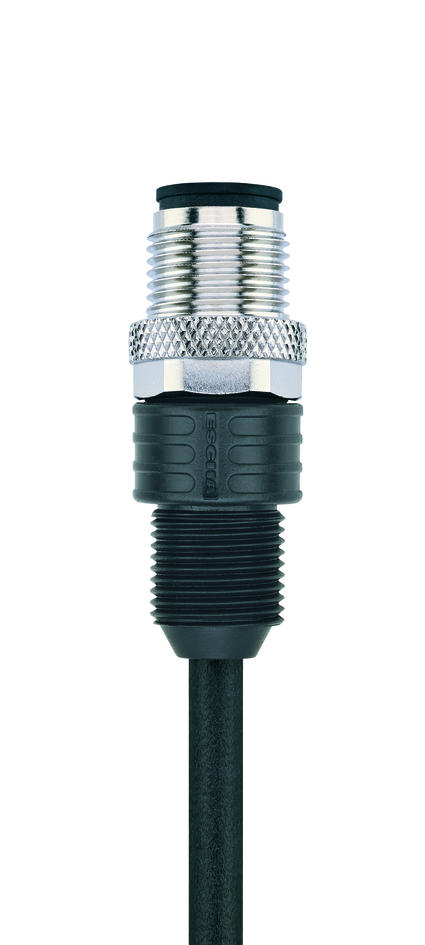

M12, male, straight, 4 poles, sensor-/actuator cable
Item description: AL-WAS4-5/S370
Item-No.: 8043818
Cable quality: S370, PUR, UL
Cable length: 5.0 m
Receptacle Double-ended cordset, M12, female, angled, 4 poles, D-coded, M12, male, angled, 4 poles, D-coded, shielded, rail approved
Item description:
RA-WFKFDSY4.029-5-RA-WWASSY4.029/S5002BU
Item-No.: 8087259
Cable quality: S5002BU, BETAtrans®, Reduced Wire
Cable length: 5.0 m
Receptacle Single-ended cordset, M12, female, straight, 4 poles, D-coded, back wall-mounting, shielded, Industrial Ethernet
Item description:
IE-FKFDSY4.029-5/16/S2171
Item-No.: 8063609
Cable quality: S2171, PUR, UL
Cable length: 5.0 m
Individual harnesses
Despite serial production we offer customer-specific cable lengths. Upon request we deliver pooled harnesses with markings to facilitate the installation of our cables and to accelerate production sequences on customer side.
ESCHA test lab
All necessary tests to guarantee a safe and reliable use of our products in bus- and rail applications are carried out and documented in the ESCHA test lab. This includes IP-tests for highest protection classes, customer-specific shock- and vibration requirements as well as application related climatic tests and temperature shocks. Furthermore, we have our own high-frequency lab and cooperate with accredited test labs, as required.
ESCHA test labFire protection and safety
ESCHA products with the ‘rail approved‘ seal consist of connectors and cables which are tested according to the following standards:
- DIN EN 45545-2 (fire performance)
- DIN EN 50155 (mechanical stresses, vibration, shock)
- IEC 61076-2-109 bzw. IEC 61076-2-101 (type-test connector)
- IEC 60529 (IP protection class)
