Fast data transmission at high stresses
Collaborating robots are the new trend in automated production processes. For this application area we offer a cable quality, which guarantees a safe and reliable data transmission of up to 10GBit/sec, despite sustaining 5 million bending cycles.
Our connectivity solutions designated as ‘PROFINET robotic’ were designed according to high-frequency- aspects and provide already today the rising demands of tomorrow.
PROFINET robotic product-rangeReceptacle Single-ended cordset, M12, female, straight, 4 poles, D-coded, back wall-mounting, shielded, Industrial Ethernet
Item description:
IE-FKFDSY4.029-10/16/S5100
Item-No.: 8088149
Cable quality: S5100, PUR, Robotic, UL
Cable length: 10.0 m
M12, male, angled, 4 poles, D-coded, M12, male, straight, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WWASSY4.029-2-IE-WASSY4.029/S2171
Item-No.: 8044089
Cable quality: S2171, PUR, UL
Cable length: 2.0 m
Receptacle Double-ended cordset, M12, female, straight, 8 poles, X-coded, M12, male, straight, 8 poles, X-coded, shielded, Industrial Ethernet
Item description:
IE-FKFDSX8.066-5-IE-WASSX8.066/S4031
Item-No.: 8063583
Cable quality: S4031, PUR, UL
Cable length: 5.0 m

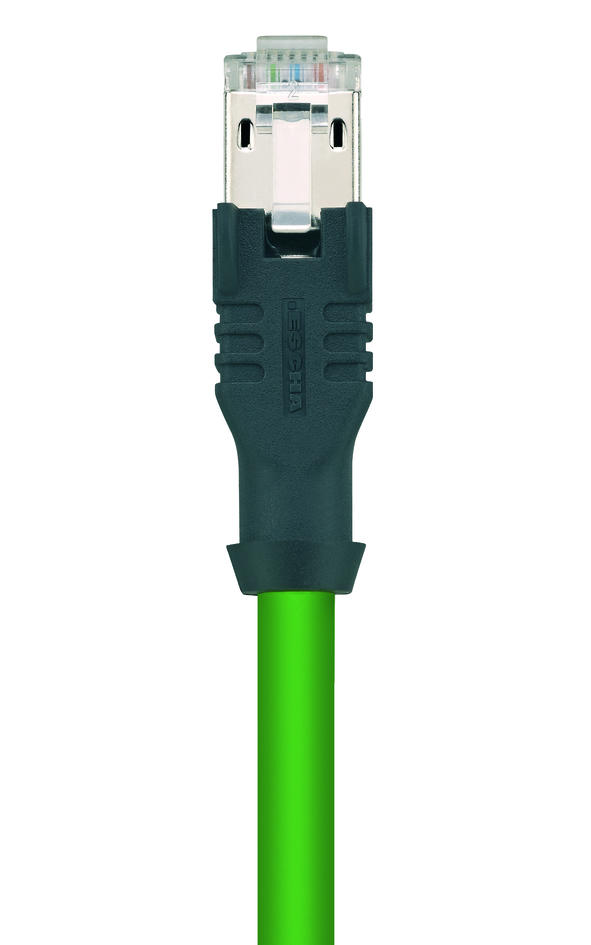

RJ45, male, straight, 4 poles, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-RJ45SS4.003-10/S5200
Item-No.: 8101289
Cable quality: S5200, PVC, UL
Cable length: 10.0 m
RJ45, male, straight, 4 poles, RJ45, male, straight, 4 poles, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-RJ45SS4.003-1-IE-RJ45SS4.003/S5200
Item-No.: 8101313
Cable quality: S5200, PVC, UL
Cable length: 1.0 m

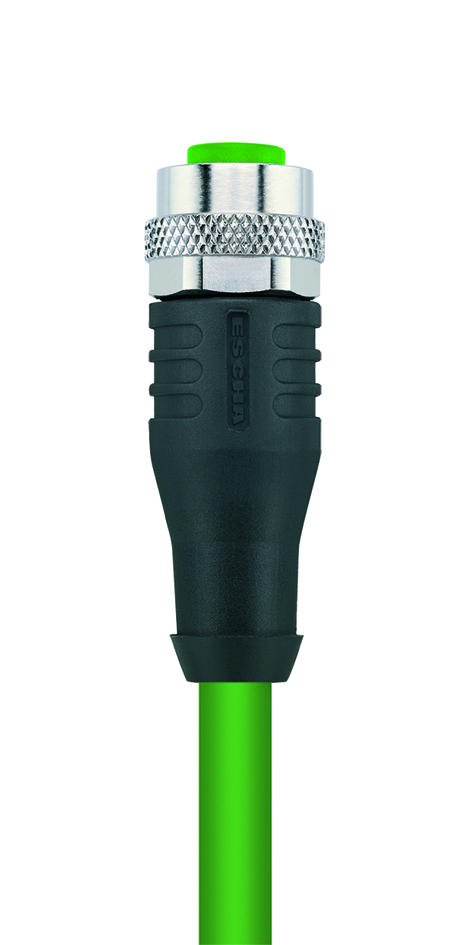

M12, female, straight, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WAKSY4.029-10/S5100
Item-No.: 8089476
Cable quality: S5100, PUR, Robotic, UL
Cable length: 10.0 m
M12, male, angled, 4 poles, D-coded, RJ45, male, straight, 4 poles, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WWASSY4.029-1-IE-RJ45SS4.003/S2171
Item-No.: 8062317
Cable quality: S2171, PUR, UL
Cable length: 1.0 m
M12, male, straight, 4 poles, D-coded, RJ45, male, straight, 4 poles, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WASSY4.029-5-IE-RJ45SS4.003/S2171
Item-No.: 8061083
Cable quality: S2171, PUR, UL
Cable length: 5.0 m
M8, female, angled, 4 poles, D-coded, M8, male, angled, 4 poles, D-coded, shielded, Industrial Ethernet
Item description:
IE-SWKPSD4.073-1-IE-SWSPSD4.073/S2171
Item-No.: 8089236
Cable quality: S2171, PUR, UL
Cable length: 1.0 m
Receptacle Double-ended cordset, M12, female, straight, 8 poles, X-coded, M12, male, straight, 8 poles, X-coded, shielded, Industrial Ethernet
Item description:
IE-FKFDSX8.066-1-IE-WASSX8.066/S4030
Item-No.: 8063569
Cable quality: S4030, PUR, UL
Cable length: 1.0 m
10 million bending cycles
ESCHA offers a control cable for signal transmission which is especially drag-chain adapted (minimum 10 million cycles) and extremely torsion resistant (minimum 10 million cycles/+-360°). Additionally, it provides for good weld-field immunity, chemicals-, and oil resistance. The combination of these properties facilitates operation wherever high flexibility at concurrent reliability is essential for you.
Connectors with S7400-cableM12, female, straight, 4 poles, M12, male, angled, 4 poles, sensor-/actuator cable
Item description:
AL-WAK4-1-AL-WWAS4/S7400
Item-No.: 8058915
Cable quality: S7400, PUR, robotic, UL
Cable length: 1.0 m
M12, female, straight, 3 poles, M12, male, angled, 3 poles, sensor-/actuator cable
Item description:
AL-WAK3-2-AL-WWAS3/S7400
Item-No.: 8058913
Cable quality: S7400, PUR, robotic, UL
Cable length: 2.0 m
M12, female, straight, 4 poles, sensor-/actuator cable
Item description:
AL-WAK4-10/S7400
Item-No.: 8058867
Cable quality: S7400, PUR, robotic, UL
Cable length: 10.0 m
M8, female, straight, 3 poles, with LED, sensor-/actuator cable
Item description:
AL-SKP3P2-10/S7400
Item-No.: 8113654
Cable quality: S7400, PUR, robotic, UL
Cable length: 10.0 m
M12, male, angled, 5 poles, sensor-/actuator cable
Item description:
AL-WWAS4.5-2/S7400
Item-No.: 8084861
Cable quality: S7400, PUR, robotic, UL
Cable length: 2.0 m
M12, female, straight, 4 poles, sensor-/actuator cable
Item description:
AL-WAK4-5/S7400
Item-No.: 8058866
Cable quality: S7400, PUR, robotic, UL
Cable length: 5.0 m
Ø8mm snap, female, angled, 4 poles, Ø8mm snap, male, straight, 4 poles, sensor-/actuator cable
Item description:
AL-WKP4-1-AL-SP4/S7400
Item-No.: 8075799
Cable quality: S7400, PUR, robotic, UL
Cable length: 1.0 m
M12, male, straight, 3 poles, sensor-/actuator cable
Item description:
AL-WAS3-5/S7400
Item-No.: 8058965
Cable quality: S7400, PUR, robotic, UL
Cable length: 5.0 m

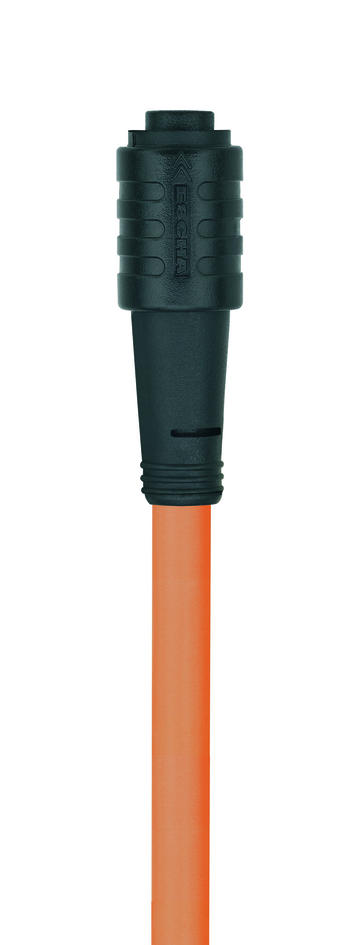

Ø8mm snap, female, straight, 3 poles, with locking mechanism, sensor-/actuator cable
Item description:
AL-ZKP3-2/S7400
Item-No.: 8059143
Cable quality: S7400, PUR, robotic, UL
Cable length: 2.0 m
M12, female, straight, 4 poles, with LED, sensor-/actuator cable
Item description:
AL-WAK4P2-10/S7400
Item-No.: 8058933
Cable quality: S7400, PUR, robotic, UL
Cable length: 10.0 m
