Power supply via M12-interface
M12 POWER stands for a reliable power transmission via the compact and standardized M12-interface according to IEC 61076-2-11. Four different codings – S, T, K and L – as well as various cable qualities offer the right solution for any application.
The overmolded cord sets, receptacles and junctions are dust- and waterproof according to IP65, IP67 and IP68. They are designed to meet UL2237 requirements.
M12 POWER cord sets

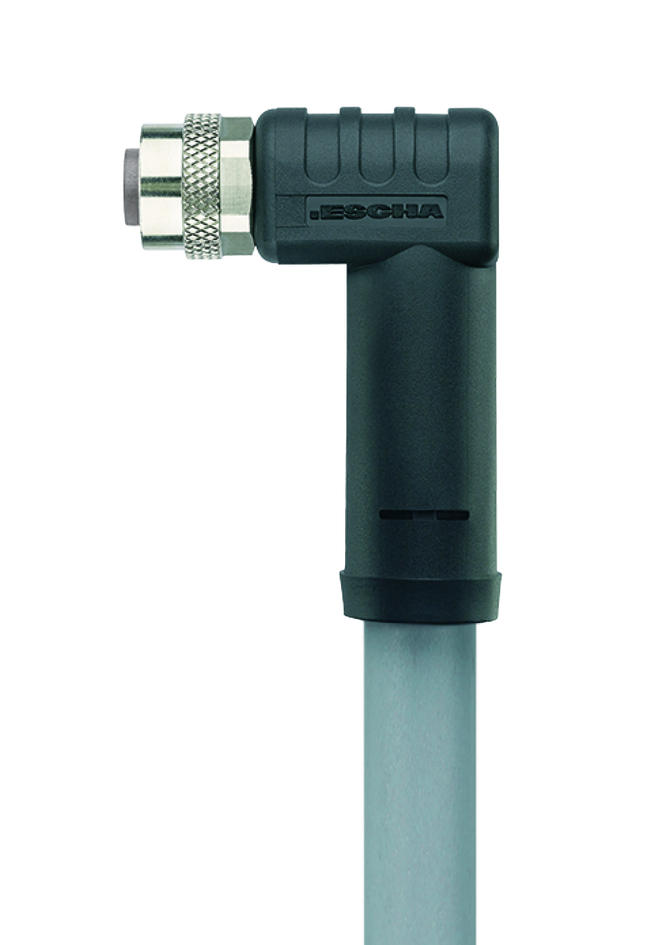

M12, female, angled, 4+FE, L-coded, M12, male, angled, 4+FE, L-coded, POWER
Item description:
PL-WM12K5.269-5-PL-WM12S5.269/S5015GY
Item-No.: 8076200
Cable quality: S5015GY, PUR, UL
Cable length: 5.0 m
M12, female, straight, 4+PE, K-coded, M12, male, angled, 4+PE, K-coded, POWER
Item description:
PK-AM12K5.244-2-PK-WM12S5.244/S5015
Item-No.: 8076186
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
M12, female, straight, 3+PE, S-coded, M12, male, straight, 3+PE, S-coded, POWER
Item description:
PS-AM12K4.155-1-PS-AM12S4.155/S5015
Item-No.: 8068297
Cable quality: S5015, PUR, UL
Cable length: 1.0 m
M12, female, straight, 3+PE, S-coded, M12, male, angled, 3+PE, S-coded, POWER
Item description:
PS-AM12K4.155-2-PS-WM12S4.155/S5015
Item-No.: 8068134
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
M12, female, straight, 4+FE, L-coded, M12, male, angled, 4+FE, L-coded, POWER
Item description:
PL-AM12K5.269-1-PL-WM12S5.269/S5025GY
Item-No.: 8076192
Cable quality: S5025GY, PUR, UL
Cable length: 1.0 m
M12, female, angled, 4 poles, T-coded, POWER
Item description: PT-WM12K4-2/S5025
Item-No.: 8063965
Cable quality: S5025, PUR, UL
Cable length: 2.0 m
M12, female, straight, 4 poles, L-coded, M12, male, straight, 4 poles, L-coded, POWER
Item description:
PL-AM12K4-2-PL-AM12S4/S5015
Item-No.: 8076458
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
M12, female, angled, 4 poles, L-coded, M12, male, straight, 4 poles, L-coded, POWER
Item description:
PL-WM12K4-2-PL-AM12S4/S5015
Item-No.: 8076476
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
M12, male, straight, 4 poles, L-coded, POWER
Item description: PL-AM12S4-10/S5025
Item-No.: 8076528
Cable quality: S5025, PUR, UL
Cable length: 10.0 m
M12, female, angled, 4+PE, K-coded, M12, male, angled, 4+PE, K-coded, POWER
Item description:
PK-WM12K5.244-2-PK-WM12S5.244/S5015
Item-No.: 8076196
Cable quality: S5015, PUR, UL
Cable length: 2.0 m
Low voltage drop
Due to a connection cross-section up to 2.5mm² all M12 POWER components from ESCHA facilitate a large extension of power distribution. The low voltage drop in contrast to small cross-sections is a big advantage particularly in case of DC-voltage distribution.
Serial wiring structure
H-, h- and T-junctions provide for the first time a permanent, decentral and structured wiring of the power supply similar to a bus wiring from switch cabinet to terminal devices. The central wiring approach with its large cable bundles has come to an end. At ESCHA we designate this as «Power follows Bus».
M12 POWER junctions
h-splitter, M12, male, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, POWER
Item description: PT-3HM12-S4-2K4
Item-No.: 8067900
T-splitter, M12, male, straight, 4+PE, K-coded, M12, female, straight, 4+PE, K-coded, M12, female, straight, 4+PE, K-coded, POWER
Item description: PK-TM12-S5-2K5
Item-No.: 8075810
H-splitter, M12, male, straight, 3+PE, S-coded, M12, female, straight, 3+PE, S-coded, POWER
Item description: PS-4HM12-S4-3K4
Item-No.: 8062860
h-splitter, M12, male, straight, 4+PE, K-coded, M12, female, straight, 4+PE, K-coded, POWER
Item description: PK-3HM12-S5-2K5
Item-No.: 8075817
h-splitter, M12, male, straight, 3+PE, S-coded, M12, female, straight, 3+PE, S-coded, POWER
Item description: PS-3HM12-S4-2K4
Item-No.: 8062859
T-splitter, M12, male, straight, 3+PE, S-coded, M12, female, straight, 3+PE, S-coded, M12, female, straight, 3+PE, S-coded, POWER
Item description: PS-TM12-S4-2K4
Item-No.: 8062858
T-splitter, M12, male, straight, 4+FE, L-coded, M12, female, straight, 4+FE, L-coded, M12, female, straight, 4+FE, L-coded, POWER
Item description: PL-TM12-S5-2K5
Item-No.: 8075819
T-splitter, M12, male, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, POWER
Item description: PT-TM12-S4-2K4
Item-No.: 8067897
H-splitter, M12, male, straight, 4+FE, L-coded, M12, female, straight, 4+FE, L-coded, POWER
Item description: PL-4HM12-S5-3K5
Item-No.: 8075821
H-splitter, M12, male, straight, 4 poles, T-coded, M12, female, straight, 4 poles, T-coded, POWER
Item description: PT-4HM12-S4-3K4
Item-No.: 8067903
