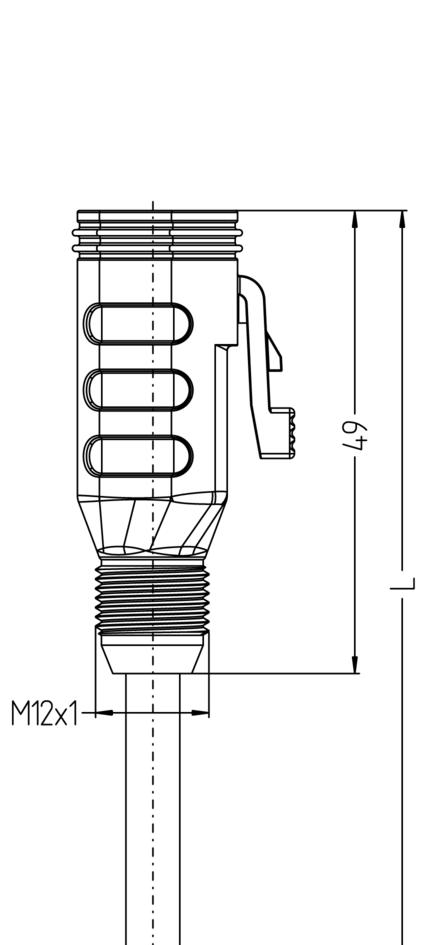

ET, female, straight, 3 poles, grip body with thread, with protection circuit, with LED, Mobile Automation
Product description
Product type: Single-ended cordset
Application: Mobile Automation
Item description: MA-ET06-3SGP1-5/S370
Item-No.: 8114558
Cable quality: S370, PUR, UL
Cable length:
Packaging unit: 1 pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+90°C |
| Cable end assembly | Open cable end |
| Connector | Female, straight, with LED, ET |
| Contact material | Metal, CuZn, nickel-plated |
| Current load per pin (at 40°C) | 7.5 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP67, IP68, IP69 |
| Grip body material | Plastic, TPU, transparent |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Number of pins | 3 |

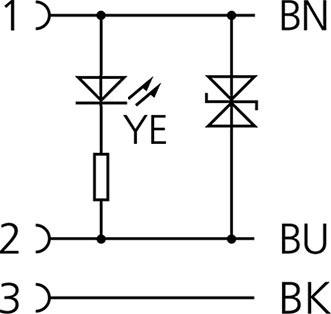

| Pin assignment |
|
| Protection circuit | Yes |
| Rated voltage |
|
| Sealing (female) material | Silicone |
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
| Technical data | |
|---|---|
| Bending radius (fixed) | 5 x Ø-cable |
| Bending radius (repeated) | 10 x Ø-cable |
| Cable quality | S370, PUR, UL |
| Cable-jacket material | PUR |
| Drag chain-application | 2 Mio. cycles |
| Halogen-free | Yes |
| Jacket color | BK, similar RAL9005 |
| Outer diameter of jacket | 5.70 mm |
| Rated voltage cable | ≤300 V |
| Special features | Flame retardant, halogen free, hydrolysis proof, LABS free, oil resistant, ozone resistant, recyclable, RoHs compliant, acid- and alkali resistant, drag chain-adapted, welding sparks resistant, seawater resistant, silicone free, torsion resistant, UV resistant |
| Temperature range (drag chain) | -25°C…+60°C |
| Temperature range (fixed) | -40°C...+90°C |
| Temperature range (repeated) | -30°C...+90°C |
| Torsion | +/-180°/m, ≥ 50000 cycles |
| Wire colors | BN, BU, BK |
| Wire cross-section | 3 x 0.75 mm² |
| Wire insulation material | PP |
| Wire structure | 42 x 0,15 mm |
