Valve connector, housing style CI, 2+PE bridged, M12, male, straight, 5 poles, z-diode, sensor-/actuator cable
Product description
Product type: Double-ended cordset
Item description:
VCI22-24.4-2-AL-WAS5.002/P01
Item-No.: 8052291
Cable quality: P01, PVC, UL
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | A-Side | B-Side |
|---|---|---|
| Ambient temperature product | -30°C...+90°C | -30°C...+90°C |
| Coding of | A | |

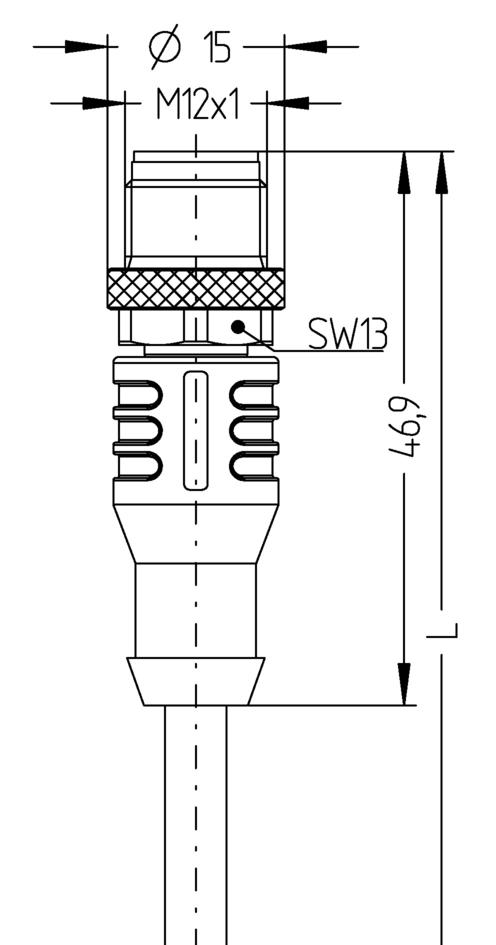

| Connector | Female, angled, Valve CI | Male, straight, M12 |
| Contact material | Metal, CuZn, silver-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK | Plastic, TPU, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | |
| Current load (at 40°C) | 4.0 A | 4.0 A |
| Degree of pollution | 3 | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 | IP65, IP67, IP68 |
| Fixing screw | Metal, CuZn, nickel-plated | |
| Grip body material | Plastic, TPU, BK, translucent | Plastic, TPU, BK |
| Housing style | CI | |
| Insulation resistance |
|
|
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |
| Number of pins | 2+PE, PE bridged | 2+PE |
| Pin assignment |
|
|
| Protection circuit | Z-diode | |
| Rated voltage |
|
|
| Sealing (female) material | Plastic, TPU | |
| Signal status-indicator | LED YE | |
| Standards | DIN EN 175301-803 | IEC 61076-2-101 |
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
| Technical data | |
|---|---|
| Bending radius (fixed) | 5 x Ø-cable |
| Bending radius (repeated) | 10 x Ø-cable |
| Cable quality | P01, PVC, UL |
| Cable-jacket material | PVC |
| Jacket color | GY, similar RAL7040 |
| Outer diameter of jacket | 5.30 mm |
| Rated voltage cable | ≤300 V |
| Special features | Good resistance against oils and chemicals, LABS free, ozone resistant, recyclable, RoHs compliant, acid- and alkali resistant, seawater resistant, UV resistant |
| Temperature range (fixed) | -25°C...+80°C |
| Temperature range (repeated) | 0°C...+80°C |
| Wire colors | BN, WH, BU, BK, GNYE |
| Wire cross-section | 4+1 x 0.34mm² |
| Wire insulation material | PVC |
| Wire structure | 19 x 0.15 mm |
