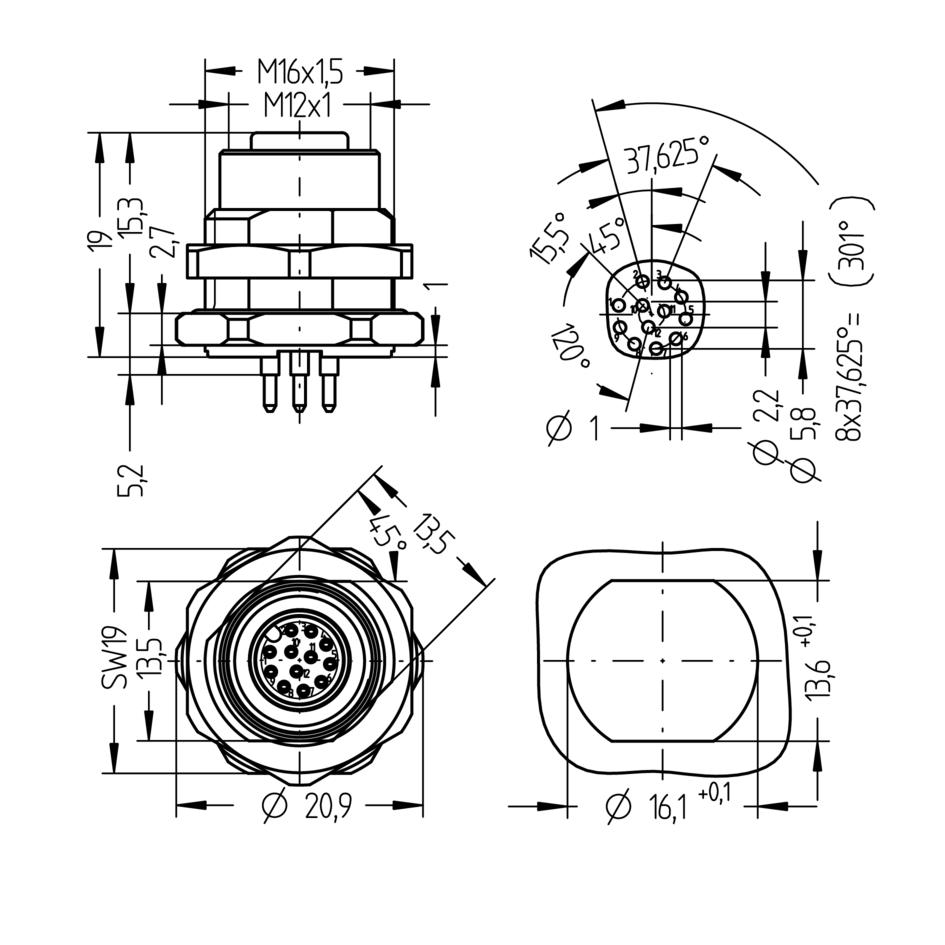

Receptacle, M12, female, straight, 12 poles, back wall-mounting, print contact
Product description
Product type: Receptacle
Application: Sensor/actuator
Item description: AL-FHM12KUA12-P/M16
Item-No.: 8072171
Inquiry
Minimum quantity:10 pcs
Packaging unit:10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit.
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -30°C...+90°C |
| Coding | A |
| Connecting type | Print contact |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA GF, BK |
| Current load per pin (at 40°C) | 1.5 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Fastening thread | M16x1.5 |
| Insulation resistance |
|
| Material of external sealing | NBR |
| Mechanical life-cycle | >100 mating cycles |
| Mounting direction | Back wall-mounting (incl. Fixing screw) |
| Number of pins | 12 |
| Rated voltage |
|
| Receptacle housing material | Metal, CuZn, nickel-plated |
| Reflow | 2 min. 250 °C |
| Sealing (female) material | FPM/FKM |
| Standards | IEC 61076-2-101 |
| Substitute for | 8029480 |
| Wrench size of fastening nut | A/F19 |
