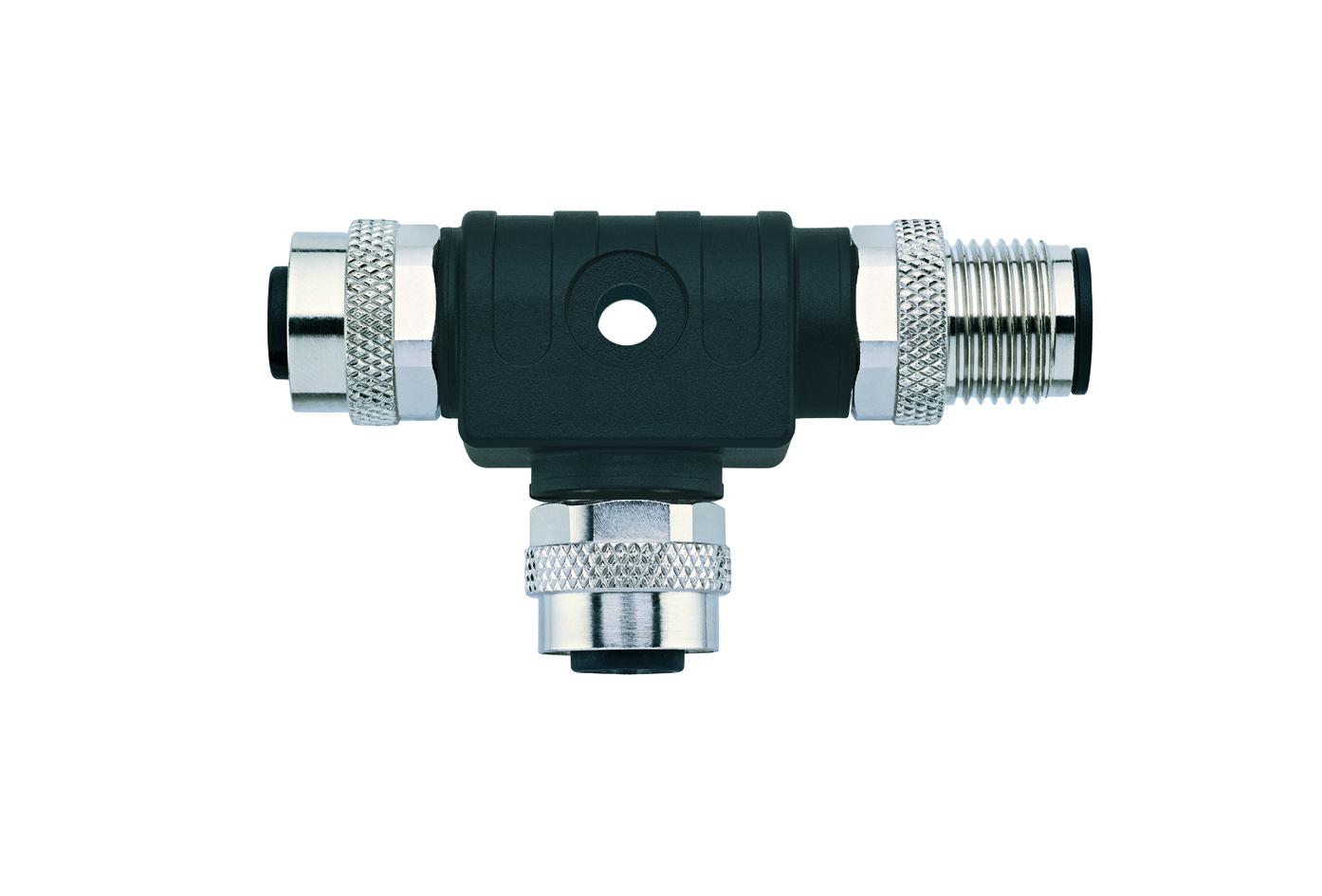

T-splitter, M12, female, straight, 5 poles, M12, female, straight, 5 poles, M12, male, straight, 5 poles
Product description
Product type: without cable outlet
Application: Sensor/actuator
Item description: FKM5-FKM5-FSM5
Item-No.: 8011661
Packaging unit: 1 pcs
Certifications
Product details
| Technical data | Exit 0 | Exit 1 | Exit 2 |
|---|---|---|---|
| Ambient temperature product | -30°C...+90°C | - | - |
| Coding of | A | A | A |
| Connector | Female, M12 | Female, M12 | Male, M12 |
| Contact material | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, TPU, BK | Plastic, TPU, BK | Plastic, TPU, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 4 A | 4 A | 4 A |
| Degree of pollution | 3 | - | - |
| Degree of protection (mounted) | IP65, IP67, IP68 | - | - |
| Grip body material | Plastic, TPU, BK | - | - |
| Insulation resistance |
|
- | - |
| Mechanical life-cycle | >100 mating cycles | - | - |
| Number of pins | 5 | 5 | 5 |
| Rated voltage |
|
|
|
| Sealing (female) material | FPM/FKM | - | - |
| Standards | IEC 61076-2-101 | - | - |
