M12, female, angled, 4 poles, D-coded, M12, male, angled, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Product description
Product type: Double-ended cordset
Application: Industrial Ethernet
Item description:
IE-WWAKSY4.029-1-IE-WWASSY4.029/S5100
Item-No.: 8088177
Cable quality: S5100, PUR, Robotic, UL
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | A-Side | B-Side |
|---|---|---|
| Ambient temperature product | -30°C...+90°C | -30°C...+90°C |
| Coding of | D | D |

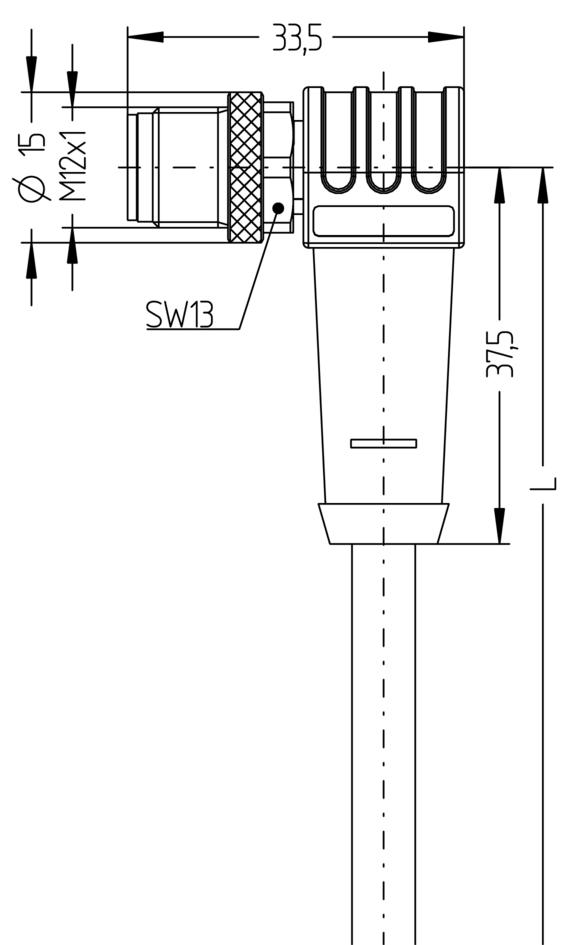

| Connector | Female, angled, M12 | Male, angled, M12 |
| Contact material | Metal, CuSn, gold-plated | Metal, CuSn, gold-plated |
| Contact-carrier material | Plastic, TPU, GN | Plastic, TPU, GN |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 4.0 A | 4.0 A |
| Degree of pollution | 3 | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 | IP65, IP67, IP68 |
| Grip body material | Plastic, TPU, BK | Plastic, TPU, BK |
| Insulation resistance |
|
|
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |
| Number of pins | 4 | 4 |
| Pin assignment |
|
|
| Rated voltage |
|
|
| Resistance | 5 mΩ | 5 mΩ |
| Shielding | With shielding | With shielding |
| Standards | IEC 61076-2-101 | IEC 61076-2-101 |
| Transmission features | Cat5e | Cat5e |
Shielded, PUR-cable for industrial applications. The cable is UL-verified or meets the Cat5e (electrical properties of EN 50288-2-1) requirements. Materials and a constructive setup allow for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable. This cable is especially suitable for robotic applications.
| Technical data | |
|---|---|
| Bending radius (fixed) | 5 x Ø-cable |
| Bending radius (repeated) | 10 x Ø-cable |
| Cable quality | S5100, PUR, Robotic, UL |
| Cable-jacket material | PUR |
| Drag chain-application | 5 Mio. bending cycles; bending radius 75 mm; maximum acceleration 20 m/s²; maximum horizontal speed 300 m/min; maximum length horizontal of cable 5 m |
| Halogen-free | Yes |
| Jacket color | GN, similar RAL6018 |
| Outer diameter of jacket | 6.50 mm |
| Rated voltage cable | 600 V UL rating |
| Special features | Flame retardant, halogen free, high flexibility, hydrolysis proof, LABS free, microbes resistant, oil resistant, ozone resistant, PROFINET Type R, recyclable, RoHs compliant, acid- and alkali resistant, drag chain-adapted, seawater resistant, torsion resistant, UV resistant |
| Temperature range (fixed) | -40°C...+80°C |
| Temperature range (repeated) | -20°C...+80°C |
| Torsion | >5 Mio. cycles; ±180°/m |
| Transmission features | Cat5e |
| Wire colors | YE/OG ; WH/BU |
| Wire cross-section | 1 x 4 x AWG22, star quad |
| Wire insulation material | PE |
| Wire structure | 19 x 0.15 mm |
