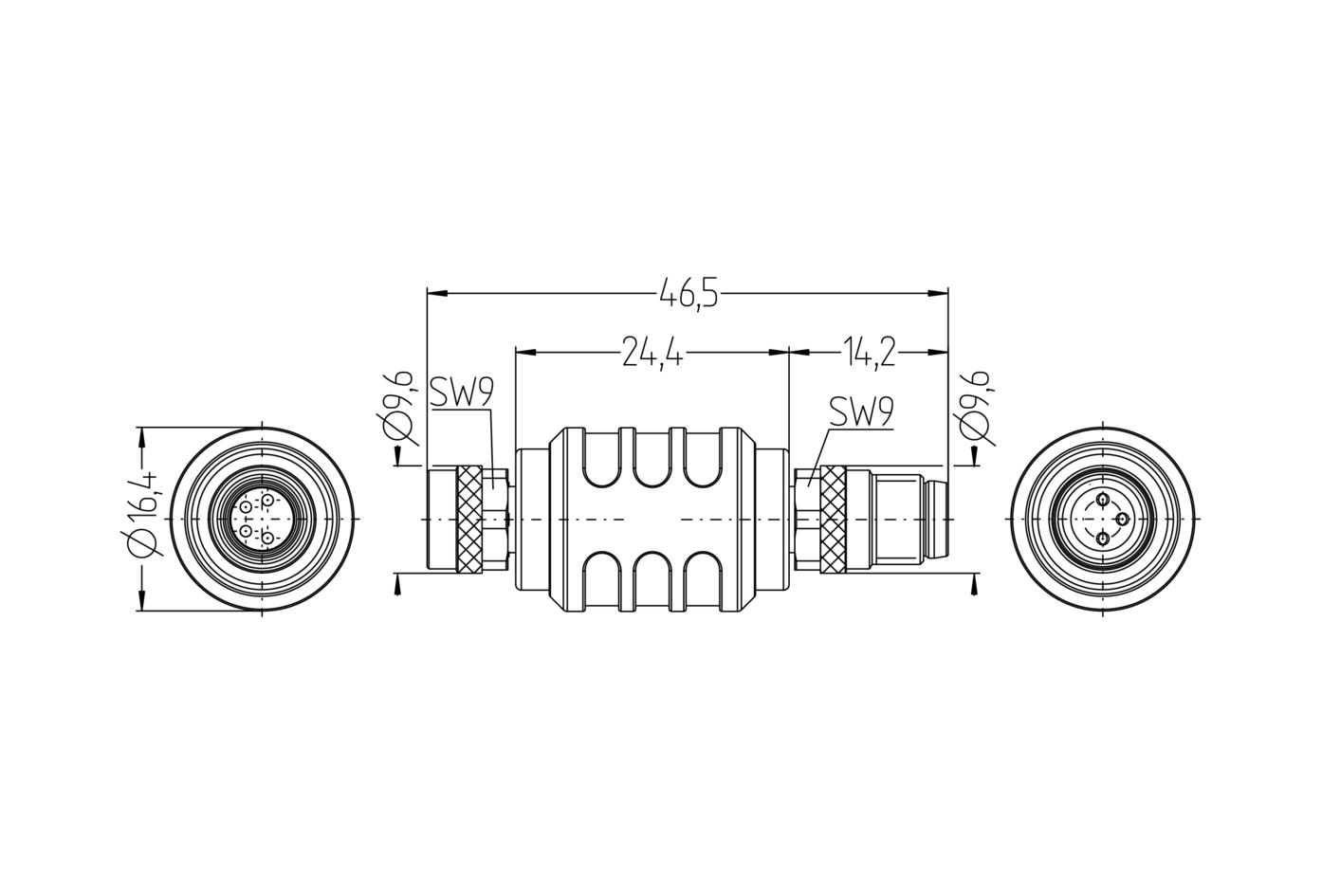

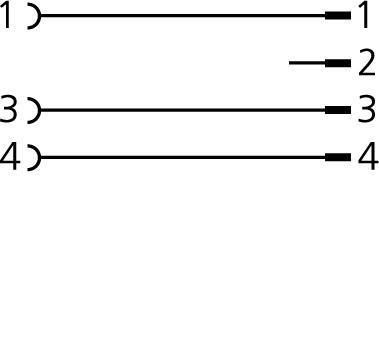

Adapter, M8, female, straight, 3 poles, M8, male, straight, 4 poles

Product description

Product type: Adapter

Application: Sensor/actuator

Item description: AL-SKP3-AL-SSP4.028

Item-No.: 8106656

Packaging unit: 1 pcs

Certifications

CE UKCA SIHI E CHINA RoHS

Product details

Technical data A-Side B-Side
Ambient temperature product -30°C...+90°C -30°C...+90°C
Coding of A A
Connector Female, M8 Male, M8
Contact material Metal, CuZn, gold-plated Metal, CuZn, gold-plated
Contact-carrier material Plastic, TPU, BK Plastic, TPU, BK
Coupling nut material Metal, CuZn, nickel-plated Metal, CuZn, nickel-plated
Current load (at 40°C) 4 A 4 A
Degree of pollution 3 3
Degree of protection (mounted) IP65, IP67, IP68 IP65, IP67, IP68
Grip body material Plastic, TPU, BK Plastic, TPU, BK
Insulation resistance ≥108 ≥108
Mechanical life-cycle >100 mating cycles >100 mating cycles
Number of pins 3 4
Rated voltage 50VAC | 60VDC 50VAC | 60VDC
Sealing (female) material FPM/FKM -
Standards IEC 61076-2-104 IEC 61076-2-104
