Solutions for all wiring levels
Trains are divided into four wiring levels. The Ethernet-Train-Backbone uses connectors with high transmission rates up to 10GBit/s according to Cat6A. For the Ethernet-Consist-Network, components with lower data rates of up to 100MBits/s according to Cat5e are sufficient. The third level consists of standard sensor-/actuator wiring for e.g. door systems. In the fourth level, power connectors are used to ensure the power supply.
ESCHA offers the appropriate and standard-compliant connectivity for all levels.

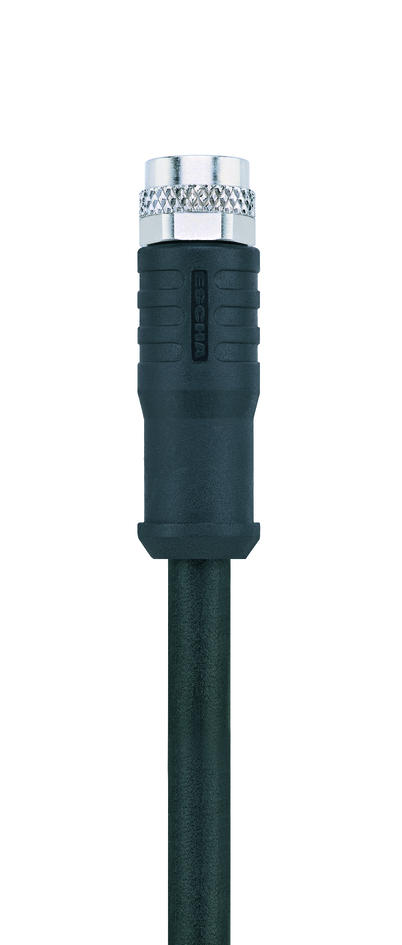

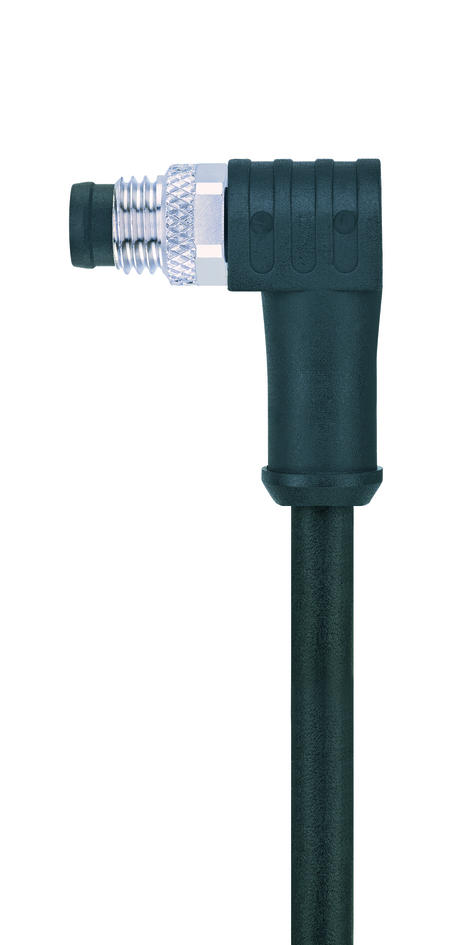

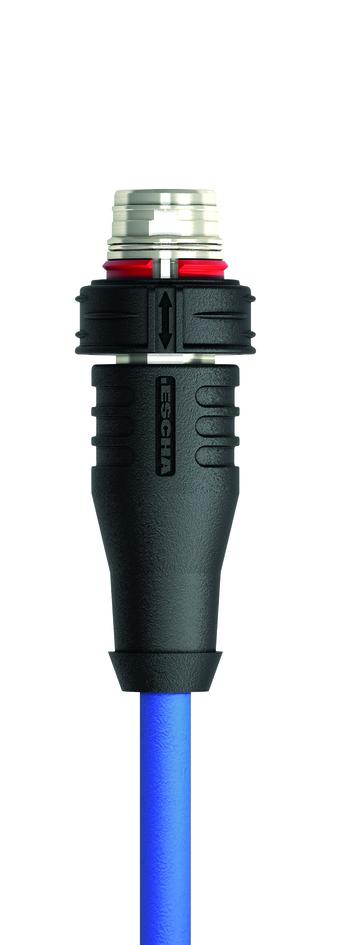

‘rail approved’ productsM8, female, angled, 4 poles, M8, male, straight, 4 poles, rail approved
Item description:
RA-SWKP4.065-5-RA-SSP4.065/S4500
Item-No.: 8087805
Cable quality: S4500, RADOX®
Cable length: 5.0 m

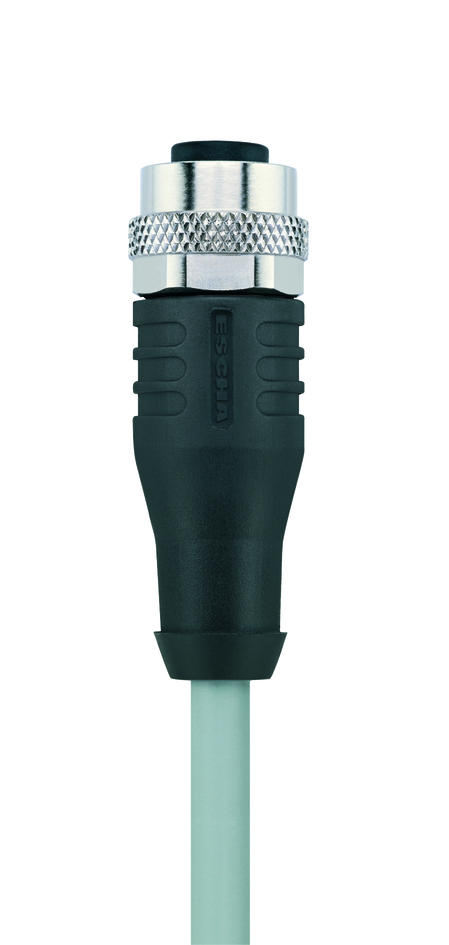

M12, female, angled, 4 poles, D-coded, grip body with thread, shielded, rail approved
Item description:
RA-WWAKSGY4.029-5/S4003
Item-No.: 8079380
Cable quality: S4003, RADOX®, Robust
Cable length: 5.0 m
Valve connector, housing style C, 2+PE bridged, with LED, rail approved
Item description:
RA-VCG22.1-24.4-5/S5600
Item-No.: 8116637
Cable quality: S5600, ÖLFLEX® TRAIN
Cable length: 5.0 m
Valve connector, housing style BI, 2+PE, rail approved
Item description:
RA-VBIG21.14-24.1-2/S5600
Item-No.: 8101698
Cable quality: S5600, ÖLFLEX® TRAIN
Cable length: 2.0 m
Receptacle Double-ended cordset, M12, female, angled, 4 poles, D-coded, M12, male, angled, 4 poles, D-coded, shielded, rail approved
Item description:
RA-WFKFDSY4.029-5-RA-WWASSY4.029/S4003
Item-No.: 8063095
Cable quality: S4003, RADOX®, Robust
Cable length: 5.0 m

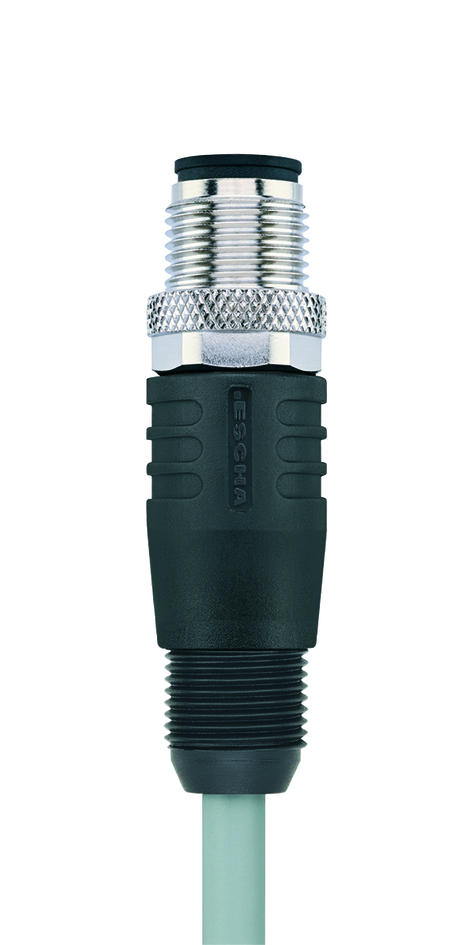

Receptacle Double-ended cordset, M12, female, straight, 4 poles, D-coded, M12, male, straight, 4 poles, D-coded, shielded, rail approved
Item description:
RA-FKFDSY4.029-5-RA-WASSY4.029/S4003
Item-No.: 8063092
Cable quality: S4003, RADOX®, Robust
Cable length: 5.0 m
M12, female, straight, 8 poles, rail approved
Item description: RA-WAK8-5/S5550
Item-No.: 8093731
Cable quality: S5550, SABIX®
Cable length: 5.0 m
Valve connector, housing style A, straight, 2+PE bridged, grip body with thread, varistor, with LED, rail approved
Item description:
RA-VAAG22.1-230.5-5/S5600
Item-No.: 8116603
Cable quality: S5600, ÖLFLEX® TRAIN
Cable length: 5.0 m
Receptacle Single-ended cordset, M12, female, straight, 8 poles, X-coded, shielded, rail approved
Item description:
RA-FKFDSX8.066-5/S4005
Item-No.: 8063108
Cable quality: S4005, RADOX®, Robust
Cable length: 5.0 m
M12, female, angled, 4 poles, D-coded, M12, male, angled, 4 poles, D-coded, shielded, rail approved
Item description:
RA-WWAKSY4.029-5-RA-WWASSY4.029/S4003
Item-No.: 8075342
Cable quality: S4003, RADOX®, Robust
Cable length: 5.0 m
![](https://www.escha.net/media/41/64/03/1693828855/Transportation_Kabelbaum_490x290px.jpg)
Individual harnesses
Despite serial production we offer customer-specific cable lengths. Upon request we deliver pooled harnesses with markings to facilitate the installation of our cables and to accelerate production sequences on customer side.
Compact and field-wireable
Field-wireable connectors can be used wherever a high degree of flexibility is required. Initially unknown cable-lengths or panel-feed-throughs are perfect examples. ESCHA offers the most compact field-wireable M12-connectors for rail applications. The 4-pole connectors with A-coding (sensor/actuator) or D-coding (ECN) are a little bit taller than 40mm and meet the important DIN EN 45545-2 and DIN EN 50155 standards. Thanks to their low weight and compact housing-style, they are the perfect solution for railway applications with minimum installation space.
Field-wireable rail connectorsField-wireable, M12, male, straight, 4 poles, crimp contact, shielded, rail approved, 250V 4A
Item description: RA-WASCS4C
Item-No.: 8098127
Field-wireable, M12, male, straight, 8 poles, X-coded, insulation displacement contact, shielded, 50VAC/60VDC 0,5A
Item description: IE-WASCSX8S
Item-No.: 8050231
Field-wireable, M12, male, straight, 4 poles, D-coded, crimp contact, shielded, rail approved, 250V 4A
Item description: RA-WASCSY4C
Item-No.: 8098126
![](https://www.escha.net/media/38/6d/17/1694694699/Transportation_Pruefen01_490x290px.jpg)
![](https://www.escha.net/media/94/46/8f/1694694699/Transportation_Pruefen02_490x290px.jpg)
![](https://www.escha.net/media/46/13/50/1694694699/Transportation_Pruefen03_490x290px.jpg)
![](https://www.escha.net/media/66/3a/3a/1693828855/Transportation_Pruefen04_490x290px.jpg)
![](https://www.escha.net/media/a3/c9/44/1694694699/Transportation_Pruefen05_490x290px.jpg)
![](https://www.escha.net/media/25/81/3c/1694694699/Transportation_Pruefen06_490x290px.jpg)
![](https://www.escha.net/media/3a/b2/21/1694694699/Transportation_Pruefen08_490x290px.jpg)
ESCHA test lab
All necessary tests to guarantee a safe and reliable use of our products in bus- and rail applications are carried out and documented in the ESCHA test lab. This includes IP-tests for highest protection classes, customer-specific shock- and vibration requirements as well as application related climatic tests and temperature shocks. Furthermore, we have our own high-frequency lab and cooperate with accredited test labs, as required.
ESCHA test labFire protection and safety
ESCHA products with the ‘rail approved‘ seal consist of connectors and cables which are tested according to the following standards:
- DIN EN 45545-2 (fire performance)
- DIN EN 50155 (mechanical stresses, vibration, shock)
- IEC 61076-2-109 bzw. IEC 61076-2-101 (type-test connector)
- IEC 60529 (IP protection class)
![](https://www.escha.net/media/f2/36/75/1693828855/Transportation_Normen_490x290px.jpg)
Connectivity for busses
The ‘bus approved‘ seal combines all products which are adapted to bus applications and are tested according the following standards:
- ECE R118 (fire performance cable)
- IEC 61076-109 bzw. IEC 61076-2-101 (type-test connector)
- IEC 60529 (IP protection class)
M12, male, straight, 4 poles, D-coded, RJ45, male, straight, 4 poles, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WASSY4.029-1-IE-RJ45SS4.003/S2171
Item-No.: 8061081
Cable quality: S2171, PUR, UL
Cable length: 1.0 m
Receptacle Single-ended cordset, M12, female, angled, 4 poles, D-coded, back wall-mounting, shielded, Industrial Ethernet
Item description:
IE-WFKFDSY4.029-2/16/S2171
Item-No.: 8063611
Cable quality: S2171, PUR, UL
Cable length: 2.0 m
M12, female, straight, 4 poles, D-coded, M12, male, angled, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WAKSY4.029-5-IE-WWASSY4.029/S2171
Item-No.: 8081791
Cable quality: S2171, PUR, UL
Cable length: 5.0 m
M12, male, straight, 4 poles, D-coded, M12, male, straight, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WASSY4.029-1-IE-WASSY4.029/S2171
Item-No.: 8031558
Cable quality: S2171, PUR, UL
Cable length: 1.0 m
M12, female, angled, 4 poles, M12, male, angled, 4 poles, sensor-/actuator cable
Item description:
AL-WWAK4-5-AL-WWAS4/S370
Item-No.: 8044045
Cable quality: S370, PUR, UL
Cable length: 5.0 m
Y-splitter, M12, male, straight, 4 poles, with cable outlet, M12, female, angled, 4 poles, M12, female, angled, 4 poles
Item description:
YK-FS4M12-2AL-WWAK4-2/2/S370
Item-No.: 8076338
Cable quality: S370, PUR, UL
Cable length: 2.0 m
M12, male, angled, 4 poles, D-coded, M12, male, angled, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WWASSY4.029-2-IE-WWASSY4.029/S2171
Item-No.: 8036902
Cable quality: S2171, PUR, UL
Cable length: 2.0 m
M8, female, angled, 4 poles, M12, male, straight, 4 poles, sensor-/actuator cable
Item description:
AL-SWKP4-1-AL-WAS4/S370/S77
Item-No.: 8094215
Cable quality: S370, PUR, UL
Cable length: 1.0 m
M12, female, angled, 4 poles, D-coded, M12, male, straight, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WWAKSY4.029-5-IE-WASSY4.029/S2171
Item-No.: 8081793
Cable quality: S2171, PUR, UL
Cable length: 5.0 m
M12, male, straight, 4 poles, D-coded, shielded, Industrial Ethernet 100 MBit/s
Item description:
IE-WASSY4.029-5/S2171
Item-No.: 8031450
Cable quality: S2171, PUR, UL
Cable length: 5.0 m
