Special cable for body construction
Our S740-cable is perfectly suited for weld-field applications in body construction. Due to an enlarged outer-jacket, the PUR-cable is perfectly resistant to welding beads. Good drag chain- and torsion properties as well as a UL-certification complete the cable’s profile.
Connectors with S740-cableM12, female, straight, 3 poles, sensor-/actuator cable
Item description: AL-WAK3-2/S740
Item-No.: 8092633
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M8, female, straight, 4 poles, M12, male, straight, 4 poles, sensor-/actuator cable
Item description:
AL-SKP4-2-AL-WAS4/S740/S77
Item-No.: 8094244
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M8, female, straight, 4 poles, sensor-/actuator cable
Item description: AL-SKP4-10/S740/S77
Item-No.: 8094230
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 10.0 m
M12, male, straight, 5 poles, sensor-/actuator cable
Item description: AL-WAS4.5-2/S740
Item-No.: 8092639
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M12, female, angled, 3 poles, with LED, sensor-/actuator cable
Item description: AL-WWAK3P2-2/S740
Item-No.: 8092621
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 2.0 m

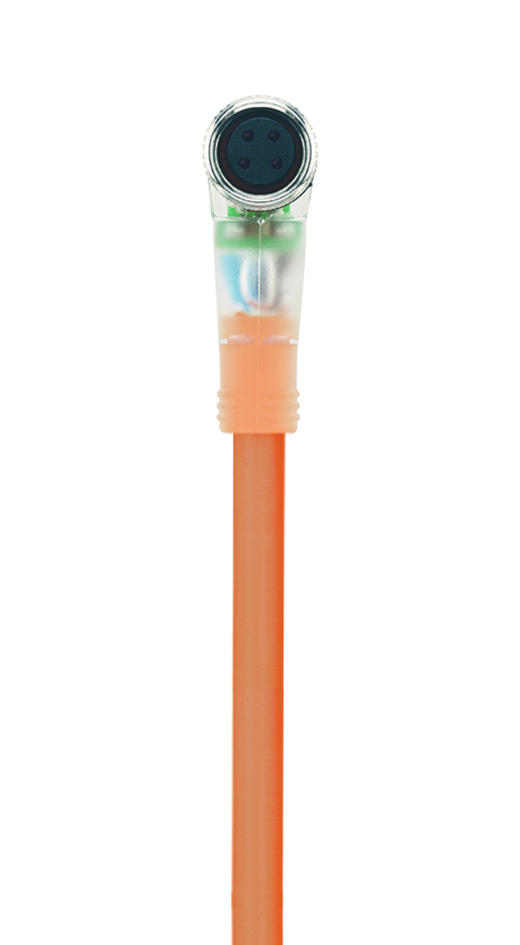

M8, female, angled, 4 poles, M12, male, straight, 4 poles, with LED, sensor-/actuator cable
Item description:
AL-SWKP4P3.1-2-AL-WAS4/S740/S77
Item-No.: 8095107
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M12, male, straight, 3 poles, sensor-/actuator cable
Item description: AL-WAS3-10/S740
Item-No.: 8092632
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 10.0 m
M12, male, straight, 4 poles, sensor-/actuator cable
Item description: AL-WAS4-2/S740
Item-No.: 8092636
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M12, female, angled, 5 poles, M12, male, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WWAK4.5-5-AL-WAS4.5/S740
Item-No.: 8092648
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 5.0 m
M12, female, angled, 5 poles, M12, male, straight, 5 poles, with LED, sensor-/actuator cable
Item description:
AL-WWAK4.5P3.1-1-AL-WAS4.5/S740
Item-No.: 8092649
Cable quality: S740, PUR, welding sparks resistent, UL
Cable length: 1.0 m

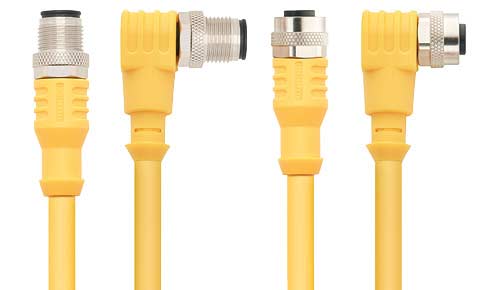

Yellow variants for safety applications
For safety applications, both cable qualities are also available with a yellow outer-jacket and yellow overmolded grip-bodies. The properties and approvals of cable and connector remain unchanged.
Connectivity for safety applicationsM12, female, angled, 5 poles, M12, male, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WWAK4.5-5-AL-WAS4.5/S740YE/S600
Item-No.: 8094439
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 5.0 m
M12, female, angled, 5 poles, sensor-/actuator cable
Item description:
AL-WWAK4.5-2/S740YE/S600
Item-No.: 8094434
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M12, female, straight, 5 poles, M12, male, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WAK4.5-2-AL-WAS4.5/S740YE/S600
Item-No.: 8092653
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M12, female, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WAK4.5-2/S740YE/S600
Item-No.: 8095452
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M12, female, angled, 5 poles, sensor-/actuator cable
Item description:
AL-WWAK4.5-5/S740YE/S600
Item-No.: 8094435
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 5.0 m
M12, female, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WAK4.5-10/S740YE/S600
Item-No.: 8095454
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 10.0 m
M12, female, straight, 5 poles, M12, male, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WAK4.5-5-AL-WAS4.5/S740YE/S600
Item-No.: 8092654
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 5.0 m
M12, female, straight, 5 poles, M12, male, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WAK4.5-1-AL-WAS4.5/S740YE/S600
Item-No.: 8092652
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 1.0 m
M12, female, angled, 5 poles, M12, male, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WWAK4.5-2-AL-WAS4.5/S740YE/S600
Item-No.: 8094438
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 2.0 m
M12, female, straight, 5 poles, sensor-/actuator cable
Item description:
AL-WAK4.5-5/S740YE/S600
Item-No.: 8095453
Cable quality: S740YE, PUR, welding sparks resistent, UL
Cable length: 5.0 m

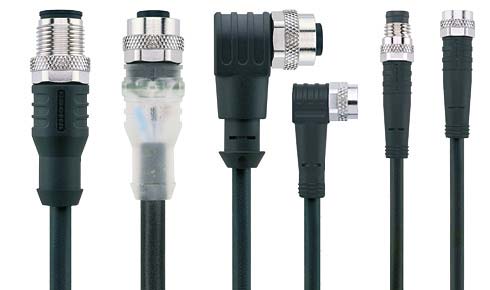

Vehicle assembly
For the vehicle assembly and other crafts, ESCHA has already opted for the proven and versatile S370-cable, which can be combined with different M8- or M12-connectors. This PUR-cable quality disposes of good drag chain- and torsion properties as well as an UL-approval.
Connectors with S370-cableM12, female, straight, 4 poles, M12, male, straight, 4 poles, sensor-/actuator cable
Item description:
AL-WAK4-5-AL-WAS4/S370
Item-No.: 8044042
Cable quality: S370, PUR, UL
Cable length: 5.0 m

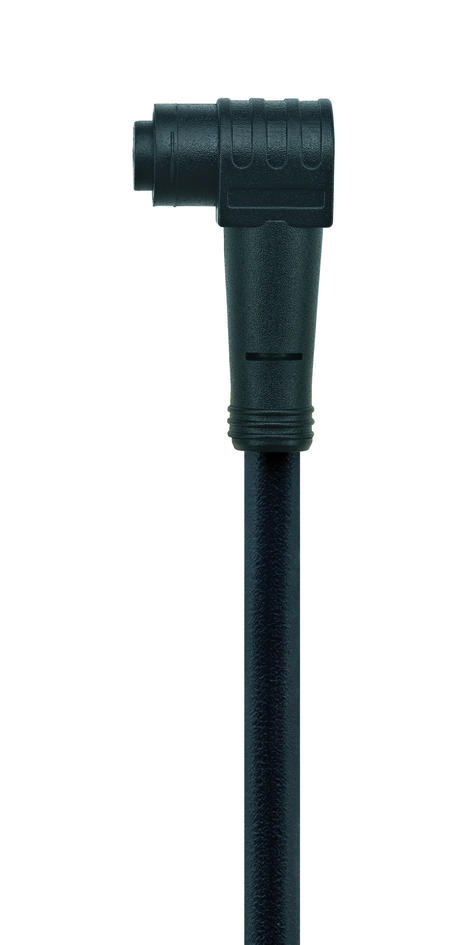

M8, female, angled, 5 poles, M8, male, straight, 5 poles, shielded, sensor-/actuator cable
Item description:
AL-SWKPS4.5-1-AL-SSPS4.5/S370
Item-No.: 8052774
Cable quality: S370, PUR, UL
Cable length: 1.0 m
M12, female, straight, 4 poles, grip body with thread, sensor-/actuator cable
Item description: AL-WAKG4-10/S370
Item-No.: 8052822
Cable quality: S370, PUR, UL
Cable length: 10.0 m
M12, male, angled, 5 poles, shielded, sensor-/actuator cable
Item description: AL-WWASS4.5-2/S370
Item-No.: 8045560
Cable quality: S370, PUR, UL
Cable length: 2.0 m
M12, male, straight, 12 poles, sensor-/actuator cable
Item description: AL-WAS12-2/S370
Item-No.: 8046926
Cable quality: S370, PUR, UL
Cable length: 2.0 m
M8, female, straight, 5 poles, sensor-/actuator cable
Item description: AL-SKP4.5-10/S370
Item-No.: 8051860
Cable quality: S370, PUR, UL
Cable length: 10.0 m
M12, female, straight, 3 poles, M12, male, straight, 3 poles, sensor-/actuator cable
Item description:
AL-WAK3-2-AL-WAS3/S370
Item-No.: 8044029
Cable quality: S370, PUR, UL
Cable length: 2.0 m
M12, female, straight, 5 poles, M12, male, straight, 5 poles, shielded, sensor-/actuator cable
Item description:
AL-WAKS4.5-5-AL-WASS4.5/S370
Item-No.: 8046295
Cable quality: S370, PUR, UL
Cable length: 5.0 m
M12, female, straight, 5 poles, shielded, sensor-/actuator cable
Item description: AL-WAKS4.5-2/S370
Item-No.: 8045557
Cable quality: S370, PUR, UL
Cable length: 2.0 m
M8, female, angled, 8 poles, M8, male, straight, 8 poles, shielded, sensor-/actuator cable
Item description:
AL-SWKPS8-1-AL-SSPS8/S370
Item-No.: 8115013
Cable quality: S370, PUR, UL
Cable length: 1.0 m

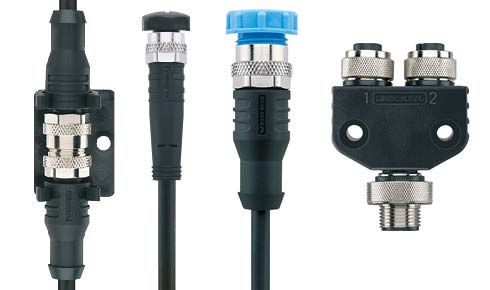

Matching original-accessories
Matching ESCHA original-accessories – such as Y-splitters or mounting kits for M8- and M12-connectors – complete our product portfolio for the automotive industry.
With Y-splitters, branches can easily be realized, and double-ended cord sets can be saved. Mounting kits ensure a safe hold in the open routing and increase order in the system.
Matching accessoriesMounting-set, M8, clips and screws M4x8, black
Item description:
Befestigungs-Set M8 / Clip + Schrauben
Item-No.: 8047663
Dustproof-cap, M12, transparent, QTY 500
Item description:
Staubschutzkappe M12 transparent, VPE500
Item-No.: 8081750
Unlocking clip, RJ45, white, QTY 10
Item description:
Entriegelungsclip RJ45, WH, VE=10Stck
Item-No.: 8071938
Unlocking clip, RJ45, yellow, QTY 10
Item description:
Entriegelungsclip RJ45, YE, VE=10Stck
Item-No.: 8071941
Stripping tool, cable stripping tool, 4.40-7.00mm outer diameter
Item description: Cable Strip Tool
Item-No.: 8066215
Unlocking clip, RJ45, brown, QTY 10
Item description:
Entriegelungsclip RJ45, beige, VE=10Stck
Item-No.: 8071948
Spare nuts for receptacle, M20, A/F24
Item description:
Sechskantmutter M20x1,5, SW24
Item-No.: 8029360

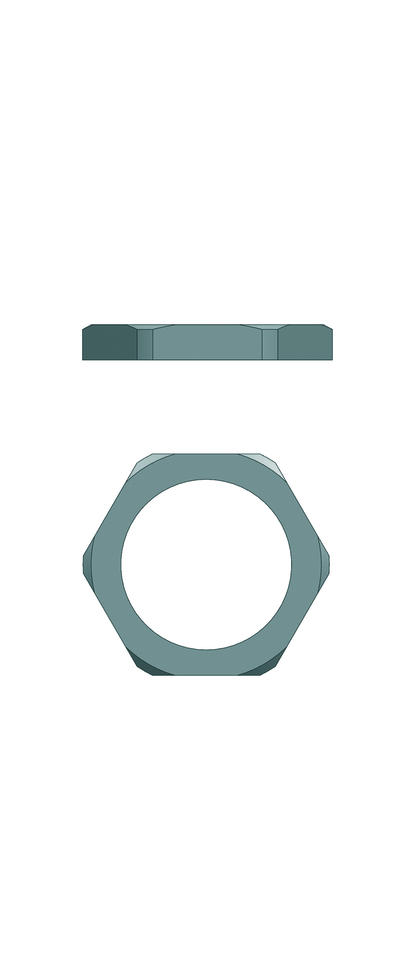

Spare nuts for receptacle, M16, A/F17
Item description:
Sechskantmutter M16x1,5, SW17
Item-No.: 8027491
Screw plug, M8 female, black, QTY 500
Item description:
Schraubstopfen M8x1 BK, VPE500
Item-No.: 8081772
