Product contact zone
In this zone, food may come into contact with system parts and afterwards be returned to the handling process. Therefore, the hygiene requirements are particularly high in this area.
To avoid the deposit of residues, connectors may not contain any dirt pockets. That is why ESCHA has developed a product range in ‘Hygienic Design’, referring to EHEDG directives. FDA-compliant materials and a high-quality TPE- cable guarantee a high resistance to sour and alkaline cleaning- and disinfectant agents
Connectors in Hygienic DesignM12, female, straight, 5 poles, M12, male, straight, 5 poles, Food & Beverage
Item description:
FB-WAKH4.5-2-FB-WASH4.5/P00
Item-No.: 8063850
Cable quality: P00, PVC
Cable length: 2.0 m
M12, female, straight, 3 poles, Food & Beverage
Item description:
FB-WAKH3-5/P00
Item-No.: 8063806
Cable quality: P00, PVC
Cable length: 5.0 m
M8, female, straight, 4 poles, M8, male, straight, 4 poles, Food & Beverage
Item description:
FB-SKPH4-5-FB-SSPH4/S3930
Item-No.: 8058604
Cable quality: S3930, TPE
Cable length: 5.0 m
M8, female, straight, 3 poles, Food & Beverage
Item description:
FB-SKPH3-10/P01
Item-No.: 8063702
Cable quality: P01, PVC, UL
Cable length: 10.0 m
M8, male, straight, 3 poles, Food & Beverage
Item description:
FB-SSPH3-10/S3930
Item-No.: 8058580
Cable quality: S3930, TPE
Cable length: 10.0 m
M12, male, straight, 5 poles, Food & Beverage
Item description:
FB-WASH4.5-2/S3930
Item-No.: 8063888
Cable quality: S3930, TPE
Cable length: 2.0 m
M12, female, angled, 5 poles, with LED, Food & Beverage
Item description:
FB-WWAKH4.5P3-10/S3930
Item-No.: 8063804
Cable quality: S3930, TPE
Cable length: 10.0 m
M12, male, angled, 4 poles, Food & Beverage
Item description:
FB-WWASH4-2/P00
Item-No.: 8063775
Cable quality: P00, PVC
Cable length: 2.0 m
M12, female, straight, 3 poles, M12, male, straight, 3 poles, Food & Beverage
Item description:
FB-WAKH3-2-FB-WASH3/S3930
Item-No.: 8058588
Cable quality: S3930, TPE
Cable length: 2.0 m
M12, female, angled, 5 poles, M12, male, angled, 5 poles, Food & Beverage
Item description:
FB-WWAKH4.5-5-FB-WWASH4.5/P00
Item-No.: 8063822
Cable quality: P00, PVC
Cable length: 5.0 m
Spray zone
In the spray zone – also called wash-down zone – food may enter into contact with system parts, but will not be returned to the handling process. Thus, the hygiene requirements towards connectors and cables are correspondingly lower in this area.
ESCHA offers easy to clean connectivity with cost-effective PVC-cables for the spray zone. Upon request, you can get M12-connectors with plastic locking nut.
Connectors with PVC-cableM8, female, angled, 4 poles, M8, male, angled, 4 poles, Food & Beverage
Item description:
FB-SWKPH4-1-FB-SWSPH4/P01
Item-No.: 8063766
Cable quality: P01, PVC, UL
Cable length: 1.0 m
M12, female, straight, 4 poles, Food & Beverage
Item description:
FB-WAKH4-2/P01
Item-No.: 8063724
Cable quality: P01, PVC, UL
Cable length: 2.0 m
M12, male, angled, 3 poles, Food & Beverage
Item description:
FB-WWASH3-10/P00
Item-No.: 8063783
Cable quality: P00, PVC
Cable length: 10.0 m
M8, female, straight, 4 poles, Food & Beverage
Item description:
FB-SKPH4-10/P00
Item-No.: 8063696
Cable quality: P00, PVC
Cable length: 10.0 m
M12, female, angled, 3 poles, M12, male, angled, 3 poles, Food & Beverage
Item description:
FB-WWAKH3-5-FB-WWASH3/P00
Item-No.: 8063833
Cable quality: P00, PVC
Cable length: 5.0 m
M12, female, angled, 3 poles, Food & Beverage
Item description:
FB-WWAKH3-2/P01
Item-No.: 8063703
Cable quality: P01, PVC, UL
Cable length: 2.0 m
M8, female, angled, 3 poles, M8, male, angled, 3 poles, Food & Beverage
Item description:
FB-SWKPH3-2-FB-SWSPH3/P01
Item-No.: 8063872
Cable quality: P01, PVC, UL
Cable length: 2.0 m
M12, female, angled, 4 poles, with LED, Food & Beverage
Item description:
FB-WWAKH4P2-2/P01
Item-No.: 8063666
Cable quality: P01, PVC, UL
Cable length: 2.0 m
M12, female, angled, 5 poles, with LED, Food & Beverage
Item description:
FB-WWAKH4.5P3-2/P01
Item-No.: 8063678
Cable quality: P01, PVC, UL
Cable length: 2.0 m
M8, female, straight, 4 poles, M8, male, straight, 4 poles, Food & Beverage
Item description:
FB-SKPH4-2-FB-SSPH4/P00
Item-No.: 8063862
Cable quality: P00, PVC
Cable length: 2.0 m
Packaging zone
The packaging zone is comparable with the classic industrial area, where food cannot come into contact with system parts. Aggressive cleaning agents and steam-jet cleaning are not required. For this zone, the proven ESCHA sensor/actuator product range is suitable.
Sensor-/Actuator connectorsM8, female, angled, 4 poles, M8, male, straight, 4 poles, with LED, sensor-/actuator cable
Item description:
AL-SWKP4P2-5-AL-SSP4/S370GY
Item-No.: 8067970
Cable quality: S370GY, PUR, UL
Cable length: 5.0 m
M12, female, straight, 3 poles, M12, male, angled, 3 poles, sensor-/actuator cable
Item description:
AL-WAK3-2-AL-WWAS3/P01BK
Item-No.: 8081959
Cable quality: P01BK, PVC, UL
Cable length: 2.0 m
M12, female, straight, 5 poles, M12, male, angled, 5 poles, shielded, sensor-/actuator cable
Item description:
AL-WAKS4.5-5-AL-WWASS4.5/S370GY
Item-No.: 8092209
Cable quality: S370GY, PUR, UL
Cable length: 5.0 m
M8, male, angled, 4 poles, sensor-/actuator cable
Item description:
AL-SWSP4-2/S400
Item-No.: 8075457
Cable quality: S400, PUR, easystrip, UL
Cable length: 2.0 m
M8, female, angled, 3 poles, M8, male, straight, 3 poles, with LED, sensor-/actuator cable
Item description:
AL-SWKP3P2-1-AL-SSP3/S370
Item-No.: 8047130
Cable quality: S370, PUR, UL
Cable length: 1.0 m
M12, female, straight, 3 poles, M12, male, angled, 3 poles, sensor-/actuator cable
Item description:
AL-WAK3-1-AL-WWAS3/S7400
Item-No.: 8058912
Cable quality: S7400, PUR, robotic, UL
Cable length: 1.0 m

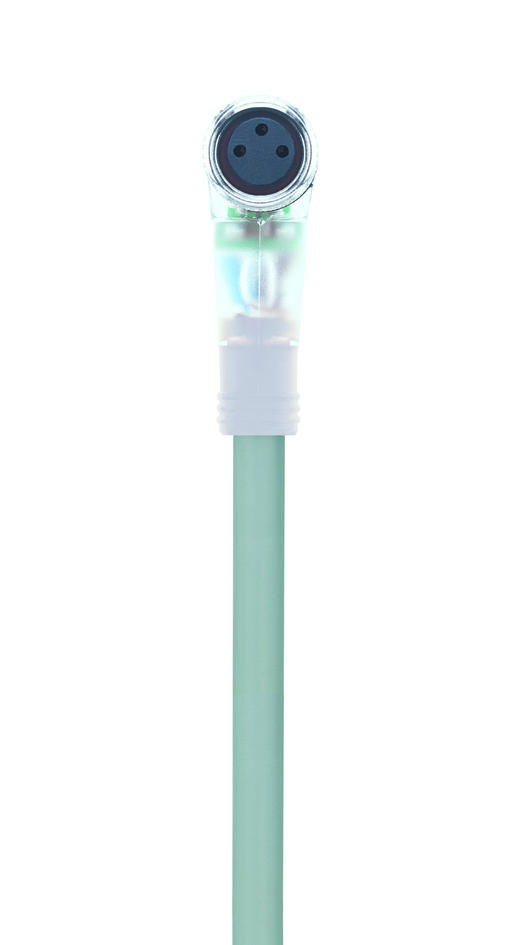

M8, female, angled, 3 poles, M8, male, straight, 3 poles, with LED, sensor-/actuator cable
Item description:
AL-SWKP3P2-2-AL-SSP3/S370GY
Item-No.: 8059202
Cable quality: S370GY, PUR, UL
Cable length: 2.0 m
M8, male, straight, 5 poles, shielded, sensor-/actuator cable
Item description:
AL-SSPS4.5-10/P00
Item-No.: 8050049
Cable quality: P00, PVC
Cable length: 10.0 m
M12, female, straight, 5 poles, M12, male, angled, 5 poles, sensor-/actuator cable
Item description:
AL-WAK4.5-1-AL-WWAS4.5/S370GY
Item-No.: 8092313
Cable quality: S370GY, PUR, UL
Cable length: 1.0 m
M8, female, angled, 4 poles, shielded, sensor-/actuator cable
Item description:
AL-SWKPS4-10/P01
Item-No.: 8051367
Cable quality: P01, PVC, UL
Cable length: 10.0 m
