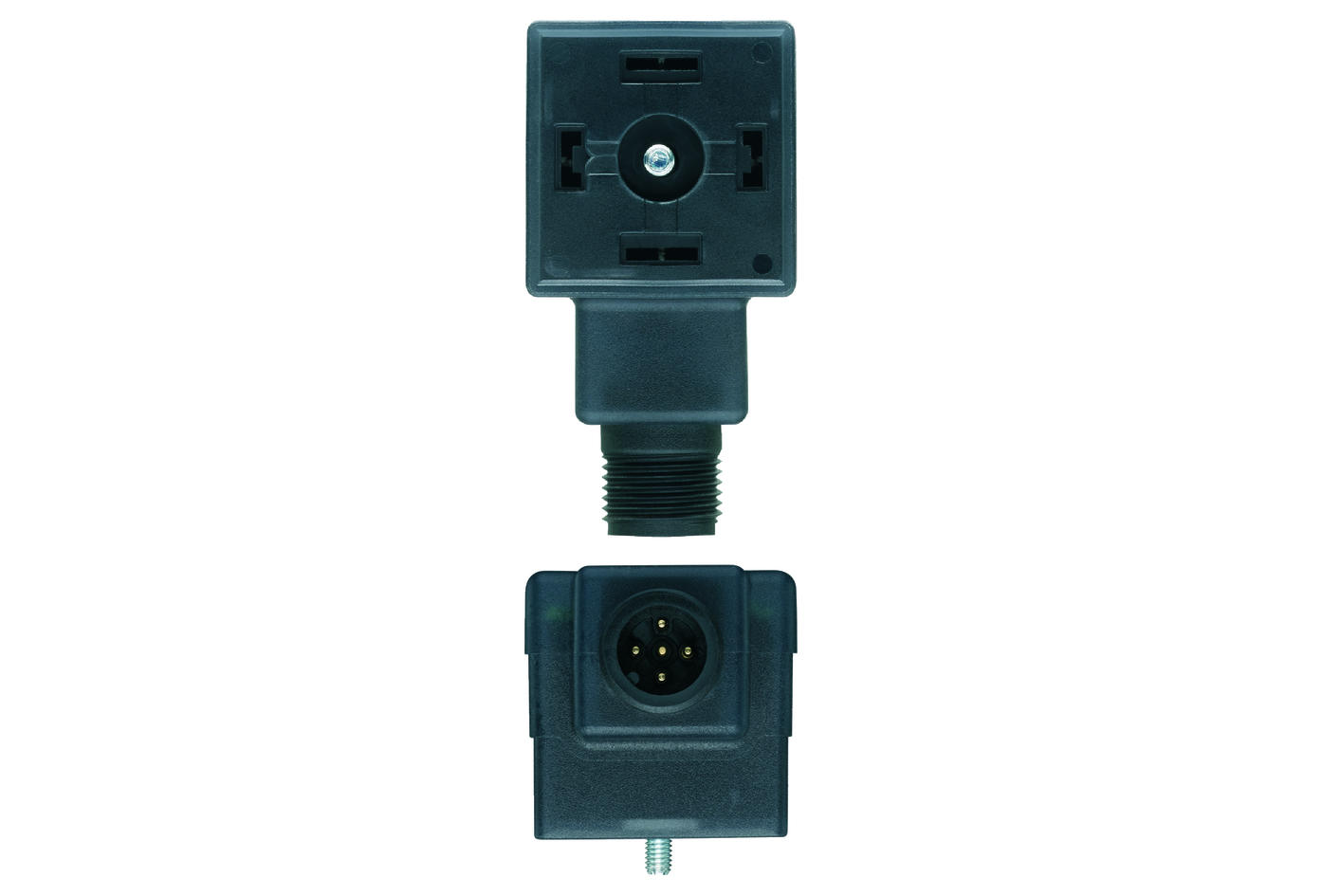

Adapter, Valve connector, housing style A, 2+PE bridged, M12, male, straight, 5 poles
Product description
Product type: Adapter
Item description: VA22-24.1-WAS5.002
Item-No.: 8055767
Packaging unit: 1 pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -30°C...+90°C |
| Coding, connecting plug | A |
| Connecting plug | M12, 5 poles |
| Connector | Female, angled, Valve A |
| Contact material | Metal, CuSn, silver-plated |
| Contact material, connecting-plug | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK |
| Contact-carrier material, connecting-plug | Plastic, PA, BK |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 |
| Degree of protection, connecting-plug (mounted) | IP67, IP69 |
| Fixing screw | Metal, CuZn, nickel-plated |
| Grip body material | Plastic, TPU, BK, translucent |
| Housing style | A |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Mechanical life-cycle, connecting-plug | >100 mating cycles |

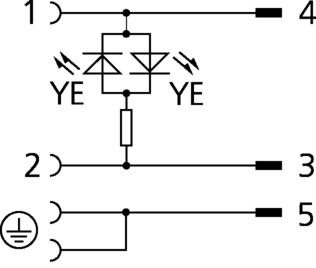

| Number of pins | 2+PE, PE bridged |
| Number of pins, connecting-plug | 5 |
| Protection circuit | Without |
| Rated voltage |
|
| Sealing (female) material | Plastic, TPU |
| Signal status-indicator | LED YE |
| Standards | DIN EN 175301-803 |
