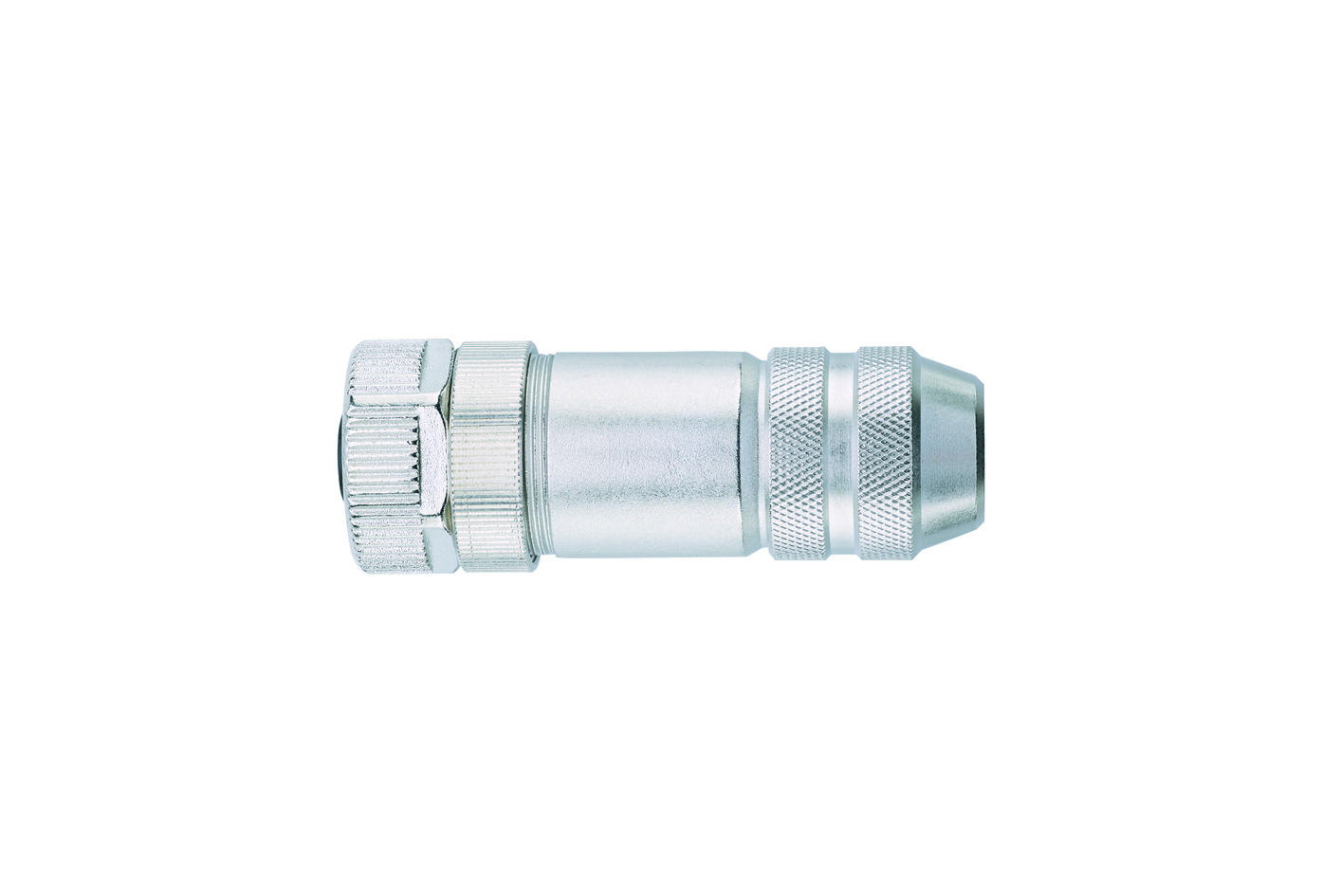

Field-wireable, M12, female, straight, 4 poles, screw-/clamp contact, shielded, 250V 4A
Product description
Product type: Field-wireable
Application: Sensor/actuator
Item description: WAKCS4K
Item-No.: 8068908
Packaging unit: 1 pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -40°C...+85°C |
| Cable outlet | 5...8 mm |
| Coding | A |
| Connecting cross-section | Max. 0.75 mm² |
| Connecting type | Screw-/clamp contact |
| Connector | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PBT, BK |
| Coupling nut material | Metal, CuZn |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP67 |
| Grip body material | Zinc die-cast, nickel-plated |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Number of pins | 4 |
| Rated voltage |
|
| Resistance | 3 mΩ |
| Shielding | With shielding |
| Standards | IEC 61076-2-101 |
