Adapter, M12, female, straight, 8 poles, X-coded, M12, female, straight, 8 poles, X-coded, shielded, Industrial Ethernet
Product description
Product type: Adapter
Item description: IE-WAKSX8-IE-WAKSX8
Item-No.: 8065951
Packaging unit: 1 pcs
Certifications
Product details
| Technical data | A-Side | B-Side |
|---|---|---|
| Ambient temperature product | -40°C...+85°C | -40°C...+85°C |
| Coding of | X | X |
| Connector | Female, straight, M12 | Female, straight, M12 |
| Contact material | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK | Plastic, PA, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 0.5 A | 0.5 A |
| Degree of pollution | 2 | 2 |
| Degree of protection (mounted) | IP65, IP67 | IP65, IP67 |
| Fire prevention according to | DIN EN 45545-2 HL1-3 | - |
| Housing material | Zinc die-cast | Zinc die-cast |
| Insulation resistance |
|
|
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |

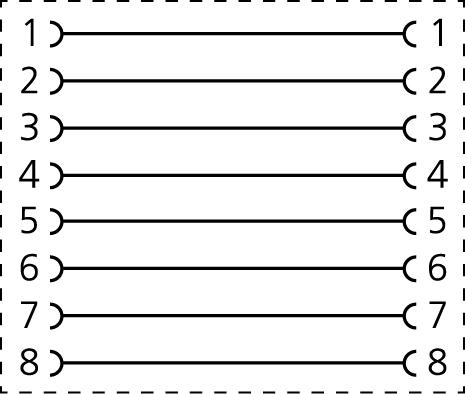

| Number of pins | 8 | 8 |
| Rated voltage |
|
|
| Sealing (female) material | FPM/FKM | FPM/FKM |
| Shielding | With shielding | With shielding |
| Shock & vibration | Class 1, Category B (DIN EN 61373) | - |
| Standards | IEC 61076-2-109 | IEC 61076-2-109 |
| Temperature range | Tx (-40°C...+90°C) | - |
| Transmission features | Cat6A | Cat6A |
| Wall thickness area (Δh) | 1...4 mm | - |
