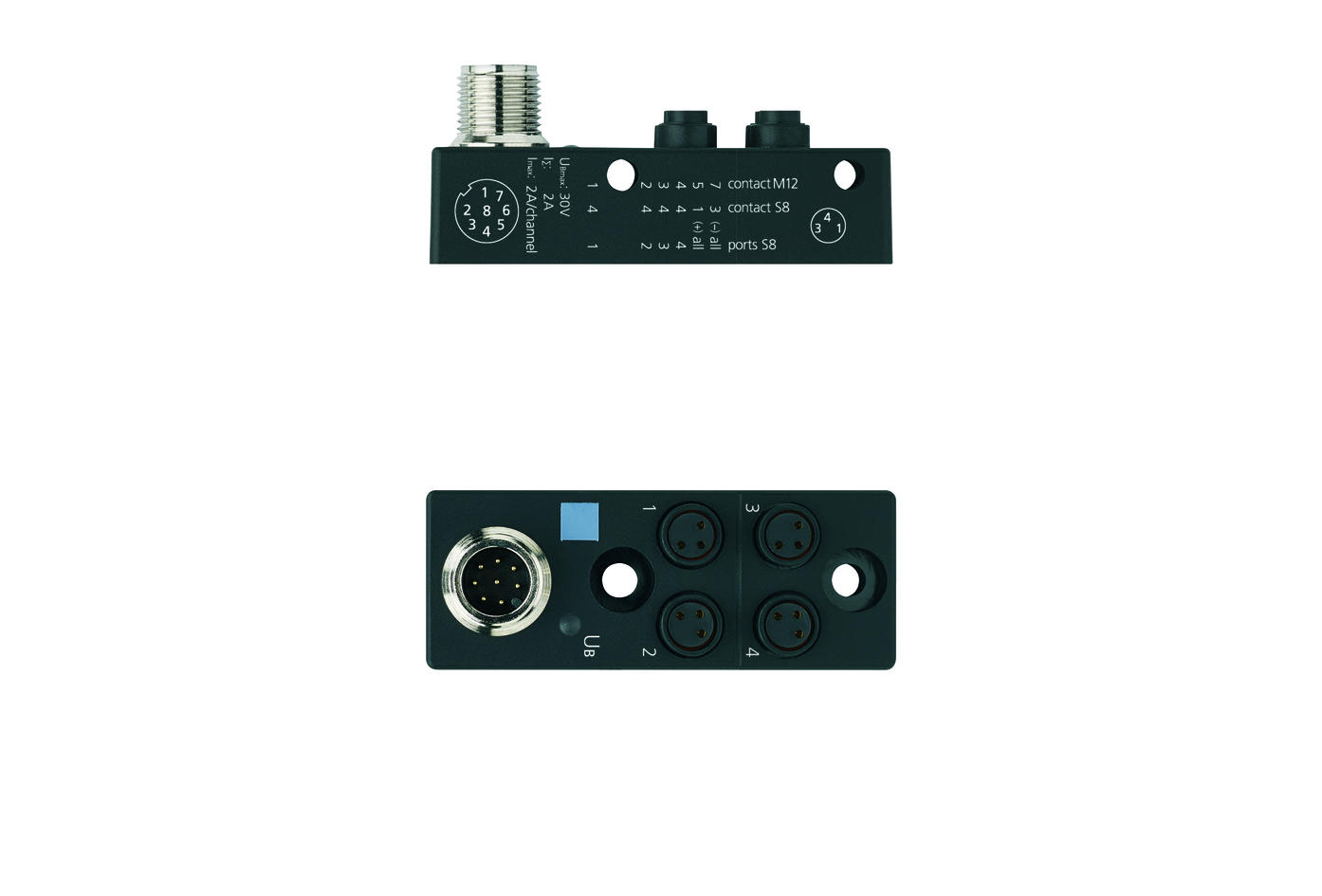

I/O-junctions passive, 4 ports, top contact, Ø8mm snap, female, 3 poles, M12, male, 8 poles
Product description
Product type: Passive junction
Item description: 4I/OS8-3P1T
Item-No.: 8062601
Inquiry
Stock: 1 pcs
Packaging unit: 1 pcs
Minimum quantity:
• Stock sale: min. 1 pcs
• Production: min. 10 pcs
Quantity: Your entry was adjusted according to the minimum quantity and packaging unit. pcs
Certifications
Product details
| Technical data | |
|---|---|
| Ambient temperature product | -30°C...+90°C |
| Circuit logic | Pnp |
| Connecting plug | M12, 8 poles |
| Connecting type | Top |
| Contact material | Metal, CuZn, gold-plated |
| Contact material, connecting-plug | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, PA, BK |
| Contact-carrier material, connecting-plug | Plastic, PA, BK |
| Current load per pin (at 40°C) | 4 A |
| Degree of pollution | 3 |
| Degree of protection (mounted) | IP65, IP67 |
| Degree of protection, connecting-plug (mounted) | IP65, IP67 |
| Housing material | Plastic, PA, BK |
| I/O-junction | 4-way, M12, with connecting plug |
| I/O-slot | Female, 8 mm snap |
| Insulation resistance |
|
| Mechanical life-cycle | >100 mating cycles |
| Mechanical life-cycle, connecting-plug | >100 mating cycles |
| Number of I/O-slots | 4 |
| Number of LEDs | 1 |
| Number of pins | 3 |
| Number of pins, connecting-plug | 8 |
| Operating voltage-indicator | LED GN |
| Rated voltage |
|
| Receptacle housing material, conecting-plug | Metal, CuZn, nickel-plated |
| Resistance | 5 mΩ |
| Sealing (female) material | FPM/FKM |
| Sealing material, connecting-plug | Plastic, FPM/FKM |
| Standards | IEC 61076-2-104 |
| Thread insert material | Metal, CuZn |
| Total current load | 4 A |
