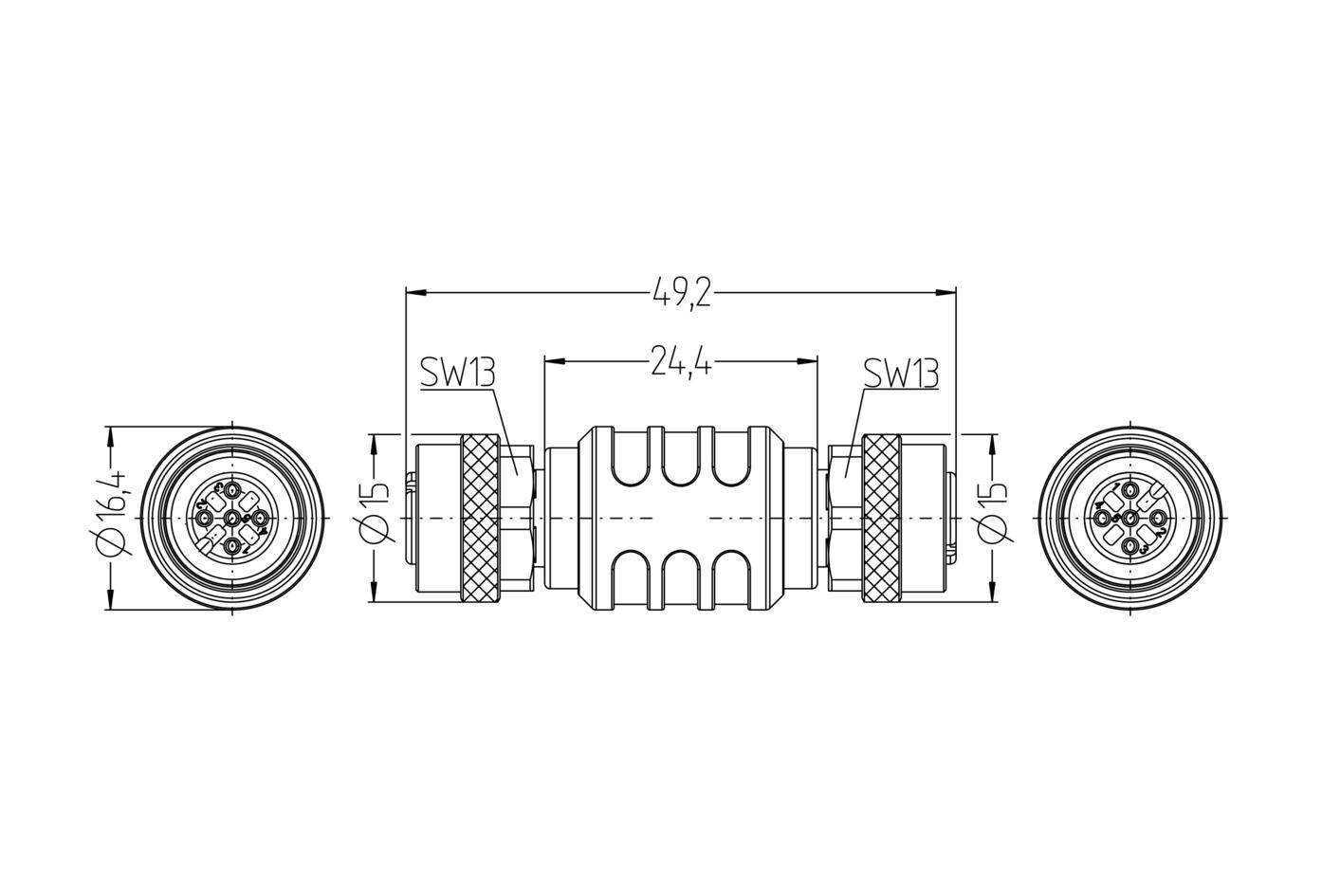

Adapter, M12, female, straight, 5 poles, M12, female, straight, 5 poles
Product description
Product type: Adapter
Application: Sensor/actuator
Item description: AL-WAK4.5-AL-WAK4.5
Item-No.: 8041351
Packaging unit: 1 pcs
Certifications
Product details
| Technical data | A-Side | B-Side |
|---|---|---|
| Ambient temperature product | -30°C...+90°C | -30°C...+90°C |
| Coding of | A | A |
| Connector | Female, M12 | Female, M12 |
| Contact material | Metal, CuZn, gold-plated | Metal, CuZn, gold-plated |
| Contact-carrier material | Plastic, TPU, BK | Plastic, TPU, BK |
| Coupling nut material | Metal, CuZn, nickel-plated | Metal, CuZn, nickel-plated |
| Current load (at 40°C) | 4 A | 4 A |
| Degree of pollution | 3 | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 | IP65, IP67, IP68 |
| Grip body material | Plastic, TPU, BK | Plastic, TPU, BK |
| Insulation resistance |
|
|
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |
| Number of pins | 5 | 5 |
| Rated voltage |
|
|
| Sealing (female) material | FPM/FKM | FPM/FKM |
| Standards | IEC 61076-2-101 | IEC 61076-2-101 |
