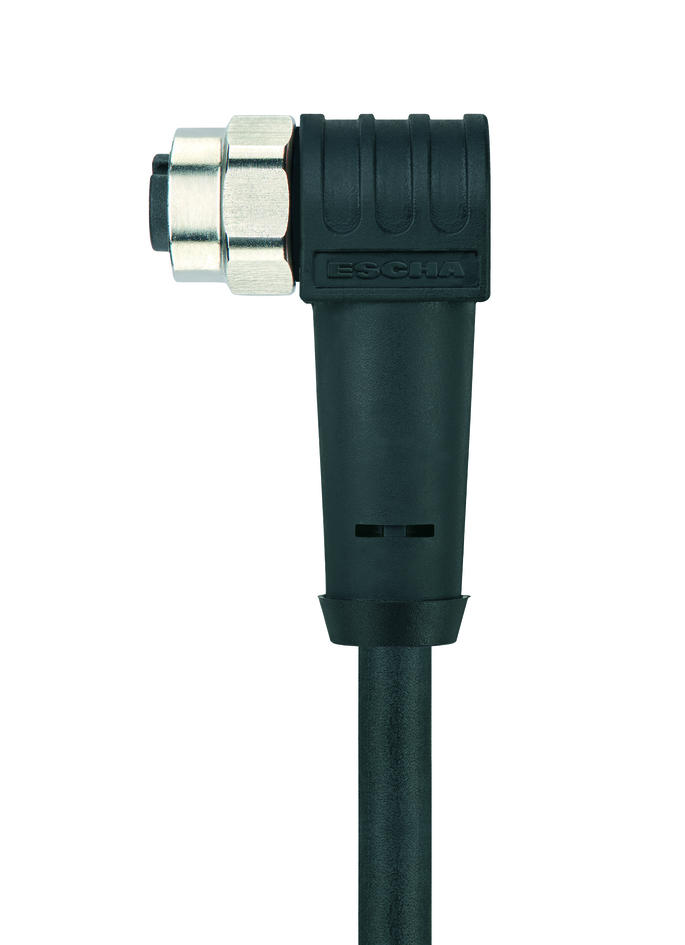

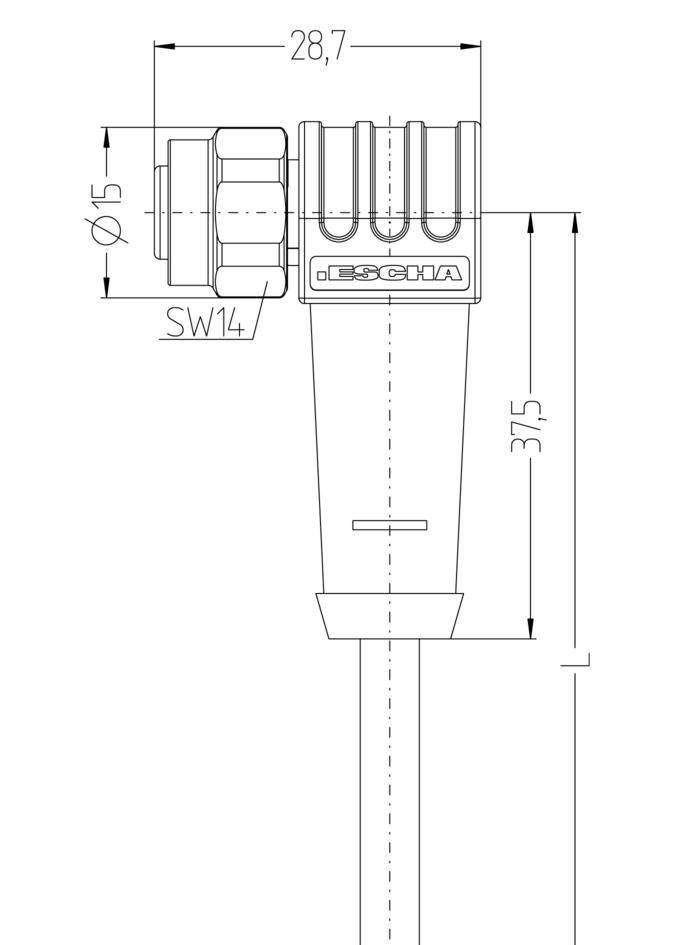

M12, female, angled, 5 poles, stainless steel, shielded, sensor-/actuator cable
Product description
Product type: Single-ended cordset
Application: Sensor/actuator
Item description: AL-WWAKSE4.5-m/S370
Item-No.: V0004144
Cable quality: S370, PUR, UL
Inquiry
Stock: Currently out of stock.
Packaging unit: 1 pcs
Minimum quantity: 10 pcs
Certifications
Product details
Technical data | |
---|---|
Ambient temperature product | -30°C...+90°C |
Cable end assembly | Open cable end |
Coding | A |
Connector | Female, angled, M12 |
Contact material | Metal, CuSn, gold-plated |
Contact-carrier material | Plastic, TPU, BK |
Coupling nut material | Stainless steel, V4A |
Current load per pin (at 40°C) | 4 A |
Degree of pollution | 3 |
Degree of protection (mounted) | IP65, IP67, IP68 |
Grip body material | Plastic, TPU, BK |
Insulation resistance |
|
Mechanical life-cycle | >100 mating cycles |
Number of pins | 5 |
Pin assignment |
|
Rated voltage |
|
Resistance | 5 mΩ |
Sealing (female) material | FPM/FKM |
Shielding | With shielding |
Standards | IEC 61076-2-101 |
Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is chemicals, hydrolysis-, and microbesresistant. The drag-chain application is possible at a bending radius of minimum10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Very good EMC-features with shielded versions.
Technical data | |
---|---|
Bending radius (fixed) | 5 x Ø-cable |
Bending radius (repeated) | 12 x Ø-cable |
Cable quality | S370, PUR, UL |
Cable-jacket material | PUR |
Drag chain-application | ≥3 Mio. cycles |
Halogen-free | Yes |
Jacket color | BK, similar RAL9005 |
Outer diameter of jacket | 5.60 mm |
Rated voltage cable | ≤300 V |
Shielding | Yes |
Special features | Flame retardant, halogen free, hydrolysis proof, LABS free, oil resistant, ozone resistant, recyclable, RoHs compliant, acid- and alkali resistant, drag chain-adapted, welding sparks resistant, seawater resistant, silicone free, torsion resistant, UV resistant |
Temperature range (drag chain) | -25°C…+60°C |
Temperature range (fixed) | -40°C...+90°C |
Temperature range (repeated) | -30°C...+90°C |
Torsion | +/-180°/m, ≥ 0.5 Mio. cycles |
Wire colors | BN, WH, BU, BK, GY |
Wire cross-section | 5 x 0.34 mm² |
Wire insulation material | PP |
Wire structure | 42 x 0.10 mm |
